That Clicking Sound When You Turn? It's Your CV Axle — And It Won't Fix Itself

That Clicking Sound When You Turn? It's Your CV Axle — And It Won't Fix Itself

There's a sound that FWD and AWD drivers learn to dread: a sharp, rhythmic click-click-click that appears when turning at low speed — pulling out of a parking spot, navigating a tight corner, or doing a U-turn. It's easy to dismiss as a minor annoyance. It isn't. That sound is your CV axle telling you it's failing, and ignoring it long enough will leave you stranded.

This post covers what CV axles actually do, how to diagnose a failing one, what happens if you wait too long, and how to choose the right replacement.

What Is a CV Axle and Why Does It Matter?

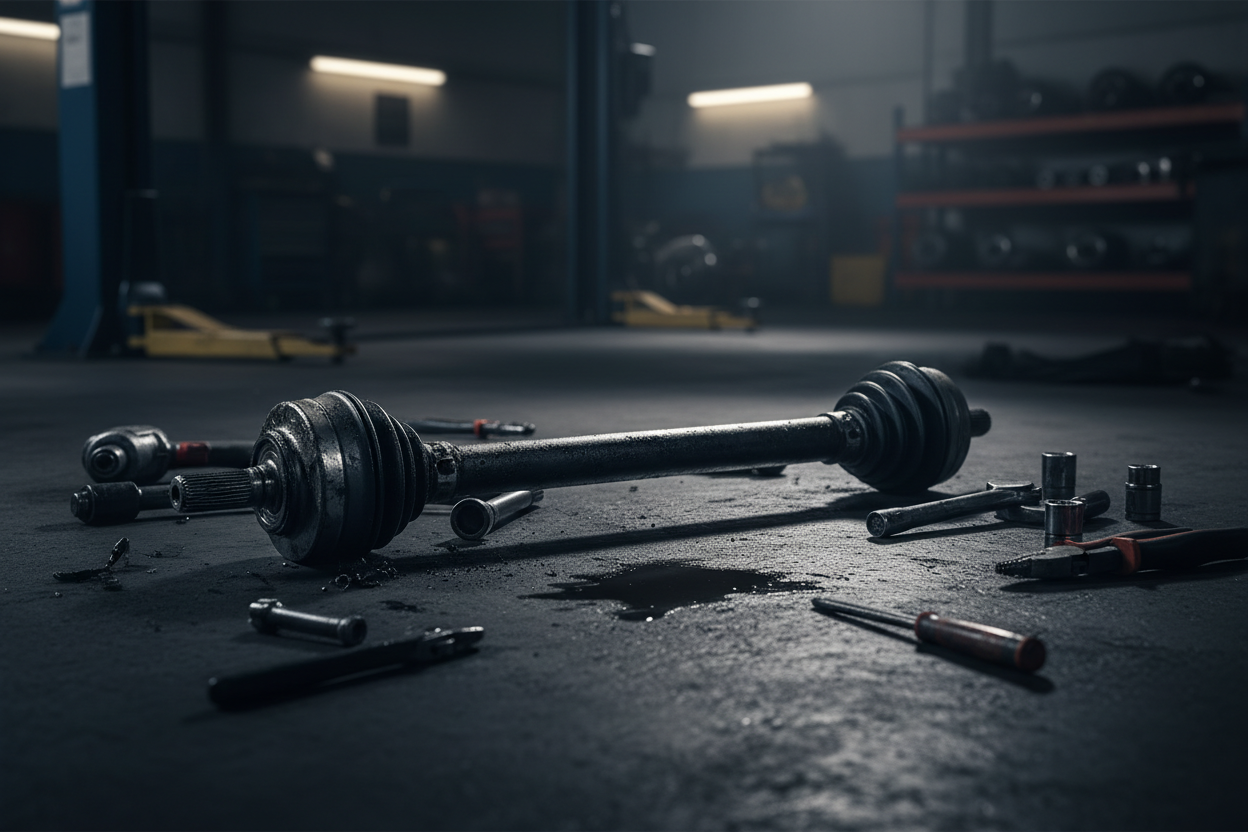

A complete front CV axle drive shaft assembly laid flat showing the inner joint, shaft, and outer CV joint with boots

A Constant Velocity (CV) axle is the shaft that transfers torque from your transmission to your wheels while allowing the wheel to move up and down with the suspension and turn left and right for steering. It does this through two CV joints — one at each end of the shaft — packed with grease and sealed inside rubber boots.

The "constant velocity" part is the key engineering achievement: unlike older U-joint driveshafts that cause vibration at extreme angles, CV joints deliver smooth, consistent power regardless of the angle the wheel is turned to. On a front-wheel-drive vehicle, the outer CV joint is working hardest — it has to handle both steering angle and power delivery simultaneously.

The system is elegant and durable when properly sealed. The problem starts when the boot tears.

The Boot: The Only Thing Standing Between Your CV Joint and Failure

A torn CV axle boot with grease splattered around it on a vehicle undercarriage, indicating imminent joint failure

The rubber boot is the CV joint's only protection. It keeps the grease in and contamination out. When it cracks or tears — from age, road debris, or heat cycling — two things happen simultaneously:

  1. Grease escapes. The joint loses its lubrication. Metal-on-metal contact begins.
  2. Dirt and water enter. Abrasive contamination accelerates wear on the precision-ground bearing surfaces inside the joint.

A torn boot is a ticking clock. The joint itself may still feel fine for weeks or months — right up until it doesn't. The classic failure sequence is: torn boot → grease loss → clicking on turns → grinding → complete joint failure.

How to spot a torn boot before it becomes a failed joint:

  • Look for black grease splattered on the inside of the wheel well or on the axle shaft itself
  • Inspect the boots visually during any tire rotation or oil change — they should be smooth and uncracked
  • A clicking sound only when turning (not straight-line driving) almost always points to the outer CV joint

Once you hear the click, the joint is already worn. A boot replacement alone won't save it at that stage — you need the full axle.

Diagnosing CV Axle Failure: The Three-Stage Test

You don't need a lift to do a basic CV axle assessment. Here's a quick field diagnosis:

Stage 1 — The Parking Lot Test
Find an empty lot. Turn the wheel to full lock in one direction and drive slowly in a tight circle. Listen for clicking. Repeat in the other direction. Clicking in one direction = outer CV joint on that side. Clicking in both = both outer joints are suspect.

Stage 2 — The Highway Vibration Check
A vibration that appears at highway speed and worsens under acceleration (but not braking) can indicate a failing inner CV joint. Inner joint failure is less common but more serious — it can cause the axle to separate under load.

Stage 3 — The Visual Inspection
With the vehicle safely supported, inspect both axle boots. Any cracking, tearing, or grease spray is a replacement indicator regardless of whether you hear noise yet. Catching it at the boot stage is the cheapest possible intervention.

Choosing a Replacement: Complete Assembly vs. Remanufactured

When it comes time to replace, you have two main options:

Remanufactured axle (most common): A used core that's been cleaned, inspected, and rebuilt with new boots, grease, and often new outer joints. Quality varies significantly by supplier. Look for units with forged (not cast) tripod housings and OE-spec grease fill.

New complete assembly: A fully new shaft, joints, and boots. Higher upfront cost, but no core charge, no unknown history, and consistent quality. The better choice for high-mileage vehicles or platforms with known joint wear issues.

For the most common FWD platforms, we carry direct-fit complete assemblies:

Don't Forget: Steering and Suspension Wear Accelerates CV Axle Failure

A worn tie rod end held next to a new replacement tie rod end on a workbench for comparison

Here's something most DIYers miss: worn tie rod ends and loose wheel bearings change the operating angle of your CV joints. When the steering geometry is sloppy, the outer CV joint is forced to work at slightly off-spec angles — which accelerates wear on the bearing races inside the joint.

If you're replacing a CV axle on a vehicle with high mileage, it's worth inspecting the tie rod ends at the same time. A worn tie rod end has play in the ball socket — grab the tie rod and try to move it by hand. Any looseness beyond a few millimetres means it needs to go.

We carry fitment-specific tie rod kits for common platforms:

And if your struts are also due — worn struts change suspension geometry in ways that compound CV joint stress — check our shock and strut kits for the Hyundai Elantra (KSH-100213) and Hyundai Sonata / Kia Optima (KSH-100585) as common companion repairs.

The Bottom Line

A clicking CV axle is one of the most clearly telegraphed failures in automotive maintenance. The joint tells you it's going — loudly and specifically — well before it actually lets go. The mistake is treating the sound as background noise rather than a repair signal.

Replace the axle at the clicking stage and it's a straightforward job. Wait until the joint grinds or separates and you're looking at potential damage to the transmission output shaft, the wheel bearing, and in worst cases, a loss of drive control.

Catch it early. The parts are affordable. The labour window is reasonable. And your car will steer and accelerate the way it's supposed to.

Parts Pioneer carries fitment-verified CV axle assemblies, tie rod kits, and suspension components for a wide range of makes and models — shipped fast across Canada.
