How the Three Systems Are Physically Connected

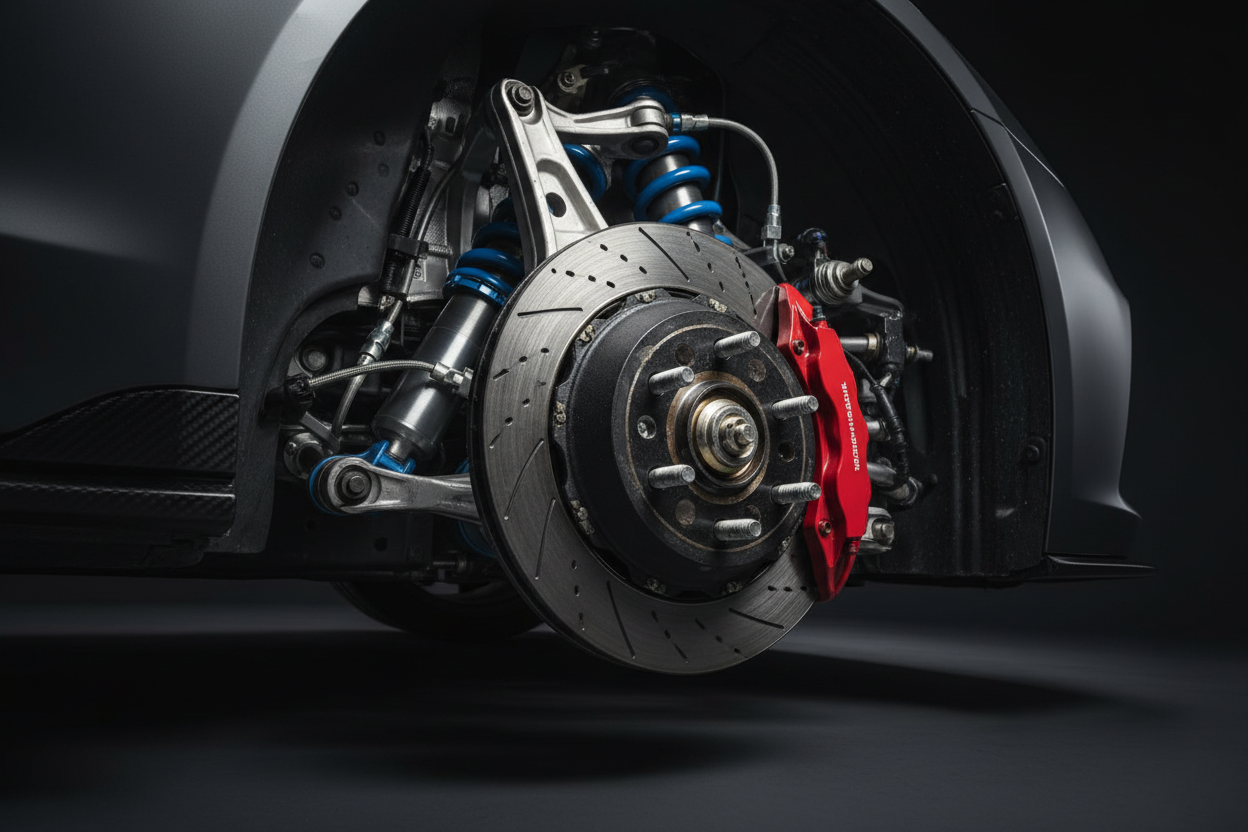

Your wheel hub is the convergence point. The wheel bearing sits inside the hub and supports the entire rotating mass of the wheel and tire. The brake rotor bolts directly to the hub flange. The CV axle passes through the center of the hub and is secured by the axle nut.
Every braking event sends a torque reaction through the hub. Every pothole sends an impact load through the bearing. Every hard acceleration sends a torsional spike through the CV joint. These forces don't stay neatly in their lane — they radiate outward and inward through shared metal.
We covered the foundational version of this relationship in The Hidden Trio: Why Your Brakes, Wheel Bearings, and Suspension Are One System — Not Three. This post goes deeper into the failure chain specifically between the drivetrain, braking, and bearing components.
Stage 1: The Bearing Starts to Wear
Wheel bearing wear is gradual and often silent in its early stages. The most common culprits are:
- Contaminated grease from a torn CV boot or a leaking axle seal
- Impact damage from potholes or curb strikes that dent the bearing races
- Overloading from towing or carrying beyond the vehicle's rated capacity
- Age and mileage — most bearings are rated for 100,000–150,000 km under normal conditions
Early-stage bearing wear produces a faint hum that changes pitch with vehicle speed. Many drivers mistake it for tire noise. The bearing continues to function, but with increased internal play.
Stage 2: The Bearing's Play Stresses the Brake Rotor
Here's where the cascade begins. A worn bearing with excess play allows the hub — and everything bolted to it — to move laterally and axially under load. The brake rotor, which is supposed to spin in a perfectly flat plane, now wobbles slightly.
This wobble is called lateral runout, and it's measured in thousandths of an inch. Even 0.002" of runout is enough to cause brake pedal pulsation — that rhythmic push-back you feel through the pedal when braking from highway speeds.
More critically, runout causes disc thickness variation (DTV). As the rotor wobbles against the brake pads, it wears unevenly. High spots develop. Those high spots generate heat spikes during braking, which can lead to the exact conditions we described in Brake Fade: What It Is, Why It Happens, and How to Prevent It.
If you've replaced rotors and pads only to have pulsation return within 10,000 km, a worn bearing is almost always the real culprit. The new rotor inherits the same runout problem.
Shop brake kits: Rear Disc Brake Rotors and Ceramic Pads Kit
Stage 3: The CV Axle Takes the Hit
The CV axle connects to the transmission on one end and passes through the wheel bearing hub on the other. When the bearing develops play, the axle's inboard and outboard CV joints are no longer operating at their designed angles — they're compensating for the hub's movement.
CV joints are engineered to handle a specific range of articulation angles. Sustained operation outside that range accelerates wear on the internal ball bearings and races inside the joint. The first sign is usually a clicking or popping sound during low-speed turns — the classic CV joint symptom.
What's less obvious is that a failing CV joint can also stress the bearing in return. A worn joint with excessive play creates vibration that transmits directly into the hub, further accelerating bearing degradation. The two components are now actively destroying each other.
Stage 4: ABS and Traction Control Enter the Picture
Modern wheel bearing hub assemblies integrate the ABS tone ring (also called the reluctor ring) directly into the bearing unit. As the bearing wears and develops play, the tone ring's position relative to the ABS sensor becomes inconsistent.
The result: erratic ABS sensor signals. Your ABS module may interpret this as a wheel speed anomaly and trigger the ABS warning light, or worse, activate ABS unnecessarily during normal braking. In some vehicles, traction control and stability control systems share the same wheel speed data — so a bad bearing can disable or confuse those systems too.
We covered the bearing-ABS relationship in detail in The Critical Connection Between Wheel Bearings and ABS Sensors: What DIY Mechanics Need to Know. If you're seeing a C0035–C0050 range ABS code alongside a wheel noise complaint, start with the bearing before replacing the sensor.
Shop wheel bearing hub kits: Front Rear Wheel Bearing & Hub Assembly Kit for Mazda 3
How to Break the Cycle
The good news: this cascade is entirely preventable if you catch it at Stage 1. Here's the diagnostic sequence to follow when any one of these symptoms appears:
- Wheel noise or hum → Check bearing play by lifting the wheel and rocking it at 12 and 6 o'clock (vertical play = bearing wear). Also spin the wheel by hand and feel for roughness.
- Brake pedal pulsation → Measure rotor runout with a dial indicator before replacing rotors. If runout exceeds spec, check the bearing first.
- CV clicking on turns → Inspect the CV boot for tears and grease loss. If the boot is intact but clicking persists, the joint is worn — check the bearing for play at the same time.
- ABS light with no obvious brake fault → Pull wheel speed sensor codes and inspect the bearing for play and roughness before condemning the sensor.
When one component in this triangle is confirmed worn, budget for inspection of the other two. On high-mileage vehicles (150,000+ km), replacing all three at the same corner during one labour event is almost always the more economical decision.
Shop strut & spring kits (for a complete corner rebuild): Front Rear Strut & Spring Kit for Cadillac SRX
The Labour Math
Here's the practical argument for addressing the triangle together:
| Scenario | Parts Cost | Labour Hours | Total (est.) |
|---|---|---|---|
| Replace bearing only, return for CV axle 6 months later | $180 + $220 | 1.5 + 2.0 = 3.5 hrs | ~$750–$900 |
| Replace bearing + CV axle together | $400 | 2.5 hrs | ~$600–$700 |
The overlap in disassembly — removing the axle nut, hub, and knuckle — means the second job costs almost nothing in additional labour when done at the same time. The savings are real.
Shop CV axle assemblies: Front CV Axle Drive Shaft Complete Assembly Kit for Ford Fiesta
Final Word
Brakes, wheel bearings, and CV axles aren't three separate line items on a repair order — they're one interconnected corner assembly. Understanding how they fail together is the difference between a proactive repair and an emergency one.
If you're sourcing parts for a corner rebuild, Parts Pioneer carries complete kits for brakes, bearings, struts, and CV axles across a wide range of makes and models. Use the fitment search to find the right parts for your vehicle, and reach out if you need help identifying what your corner needs.
