Bilstein 24-267014 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Name: Bilstein 24-267014 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber
Brand: Bilstein
SKU: BLS-24-267014
Availability: OutOfStock
Rating: 4.9 (479 reviews)

SKU: BLS-24-267014

VIN (optional)

If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.

Product details

Part Name Shock Absorber
Brand Bilstein
Country of Manufacture United States
Part Number 24-267014
UPC 651860804521

Estimate Delivery Date

State

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

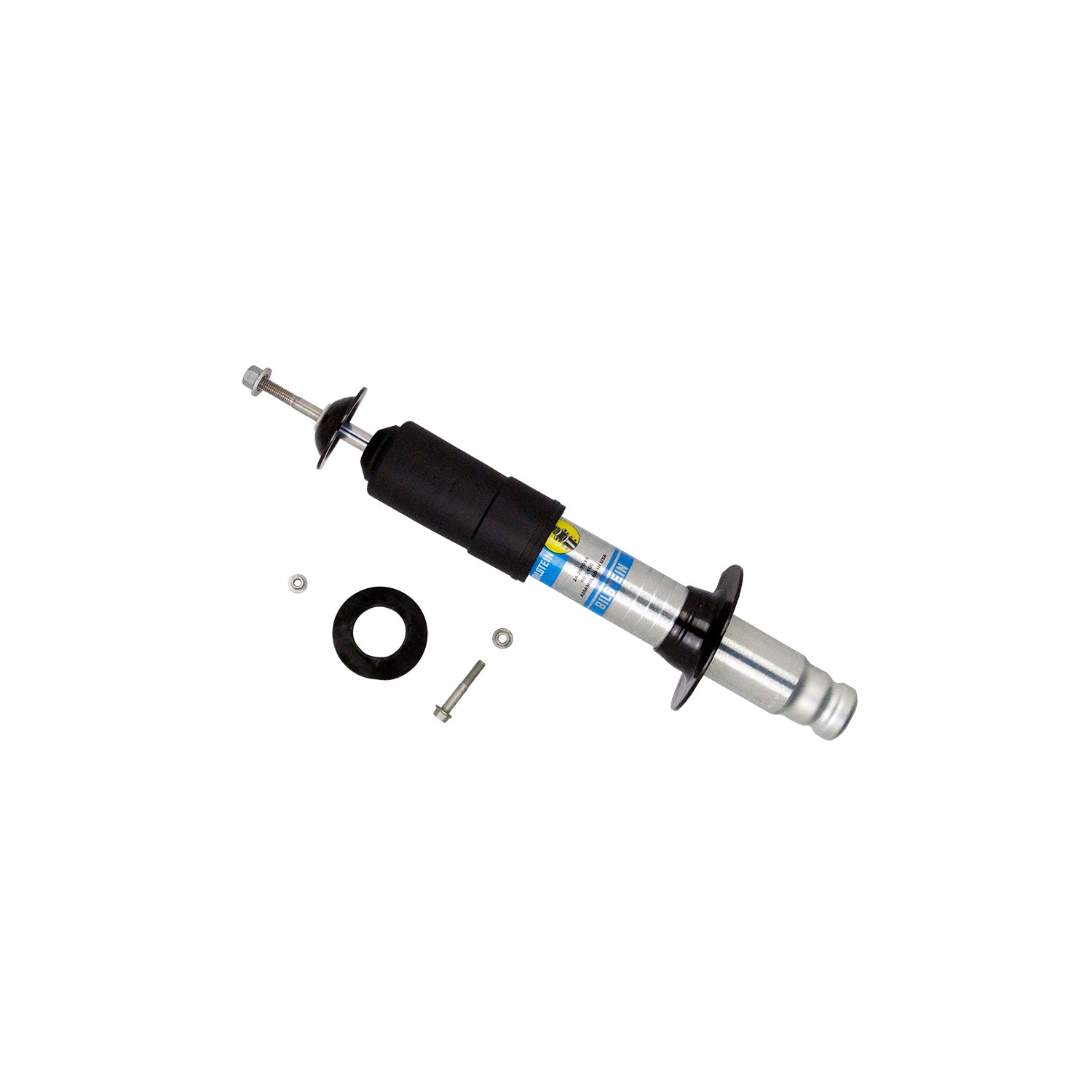

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Characteristics include:

Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:Black Straight
Collapsed Length (IN):11.26
Collapsed Length (MM):286.1
Extended Length (IN):16.41
Extended Length (MM):416.9
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Base Cup
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100 (Ride Height Adjustable)
Shaft Diameter:14mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):5.15
Stroke/Travel Length (mm):130.8
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2009	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2009	GMC	Envoy	Denali Provides 0-2.25" Front Lift	Front
2009	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2009	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2009	Saab	9-7x	4.2i Provides 0-2.25" Front Lift	Front
2009	Saab	9-7x	5.3i Provides 0-2.25" Front Lift	Front
2008	Chevrolet	Trailblazer	Base Provides 0-2.25" Front Lift Coil Rear Spring	Front
2008	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2008	GMC	Envoy	Denali Provides 0-2.25" Front Lift	Front
2008	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2008	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2008	Isuzu	Ascender	S Provides 0-2.25" Front Lift	Front
2008	Saab	9-7x	4.2i Provides 0-2.25" Front Lift	Front
2008	Saab	9-7x	5.3i Provides 0-2.25" Front Lift	Front
2007	Buick	Rainier	CXL Provides 0-2.25" Front Lift	Front
2007	Chevrolet	Trailblazer	LS Provides 0-2.25" Front Lift Coil Rear Spring	Front
2007	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2007	GMC	Envoy	Denali Provides 0-2.25" Front Lift	Front
2007	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2007	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2007	Isuzu	Ascender	S Provides 0-2.25" Front Lift	Front
2007	Saab	9-7x	4.2i Provides 0-2.25" Front Lift	Front
2007	Saab	9-7x	5.3i Provides 0-2.25" Front Lift	Front
2006	Buick	Rainier	CXL Provides 0-2.25" Front Lift	Front
2006	Chevrolet	Trailblazer	LS Provides 0-2.25" Front Lift Coil Rear Spring	Front
2006	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2006	Chevrolet	Trailblazer EXT	LS Provides 0-2.25" Front Lift	Front
2006	Chevrolet	Trailblazer EXT	LT Provides 0-2.25" Front Lift	Front
2006	GMC	Envoy	Denali Provides 0-2.25" Front Lift	Front
2006	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2006	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2006	GMC	Envoy XL	Denali Provides 0-2.25" Front Lift	Front
2006	GMC	Envoy XL	SLE Provides 0-2.25" Front Lift	Front
2006	GMC	Envoy XL	SLT Provides 0-2.25" Front Lift	Front
2006	Isuzu	Ascender	Base Provides 0-2.25" Front Lift	Front
2006	Isuzu	Ascender	LS Provides 0-2.25" Front Lift	Front
2006	Saab	9-7x	4.2i Provides 0-2.25" Front Lift	Front
2006	Saab	9-7x	5.3i Provides 0-2.25" Front Lift	Front
2005	Buick	Rainier	CXL Plus Provides 0-2.25" Front Lift	Front
2005	Buick	Rainier	CXL Provides 0-2.25" Front Lift	Front
2005	Chevrolet	Trailblazer	LS Provides 0-2.25" Front Lift Coil Rear Spring	Front
2005	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2005	Chevrolet	Trailblazer EXT	LS Provides 0-2.25" Front Lift	Front
2005	Chevrolet	Trailblazer EXT	LT Provides 0-2.25" Front Lift	Front
2005	GMC	Envoy	Denali Provides 0-2.25" Front Lift	Front
2005	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2005	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2005	GMC	Envoy XL	Denali Provides 0-2.25" Front Lift	Front
2005	GMC	Envoy XL	SLE Provides 0-2.25" Front Lift	Front
2005	GMC	Envoy XL	SLT Provides 0-2.25" Front Lift	Front
2005	Isuzu	Ascender	Limited Provides 0-2.25" Front Lift	Front
2005	Isuzu	Ascender	LS Provides 0-2.25" Front Lift	Front
2005	Isuzu	Ascender	S Provides 0-2.25" Front Lift	Front
2005	Saab	9-7x	Arc Provides 0-2.25" Front Lift	Front
2005	Saab	9-7x	Linear Provides 0-2.25" Front Lift	Front
2004	Buick	Rainier	CXL Plus Provides 0-2.25" Front Lift	Front
2004	Buick	Rainier	CXL Provides 0-2.25" Front Lift	Front
2004	Chevrolet	Trailblazer	LS Provides 0-2.25" Front Lift Coil Rear Spring	Front
2004	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2004	Chevrolet	Trailblazer	North Face Provides 0-2.25" Front Lift Coil Rear Spring	Front
2004	Chevrolet	Trailblazer EXT	LS Provides 0-2.25" Front Lift	Front
2004	Chevrolet	Trailblazer EXT	LT Provides 0-2.25" Front Lift	Front
2004	Chevrolet	Trailblazer EXT	North Face Provides 0-2.25" Front Lift	Front
2004	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2004	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2004	GMC	Envoy XL	SLE Provides 0-2.25" Front Lift	Front
2004	GMC	Envoy XL	SLT Provides 0-2.25" Front Lift	Front
2004	Isuzu	Ascender	Limited Provides 0-2.25" Front Lift	Front
2004	Isuzu	Ascender	LS Provides 0-2.25" Front Lift	Front
2004	Isuzu	Ascender	S Provides 0-2.25" Front Lift	Front
2003	Chevrolet	Trailblazer	LS Provides 0-2.25" Front Lift Coil Rear Spring	Front
2003	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2003	Chevrolet	Trailblazer	LTZ Provides 0-2.25" Front Lift Coil Rear Spring	Front
2003	Chevrolet	Trailblazer	North Face Provides 0-2.25" Front Lift Coil Rear Spring	Front
2003	Chevrolet	Trailblazer EXT	LS Provides 0-2.25" Front Lift	Front
2003	Chevrolet	Trailblazer EXT	LT Provides 0-2.25" Front Lift	Front
2003	Chevrolet	Trailblazer EXT	North Face Provides 0-2.25" Front Lift	Front
2003	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2003	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2003	GMC	Envoy XL	SLE Provides 0-2.25" Front Lift	Front
2003	GMC	Envoy XL	SLT Provides 0-2.25" Front Lift	Front
2003	Isuzu	Ascender	Base Provides 0-2.25" Front Lift	Front
2003	Isuzu	Ascender	Limited Provides 0-2.25" Front Lift	Front
2003	Isuzu	Ascender	LS Provides 0-2.25" Front Lift	Front
2002	Chevrolet	Trailblazer	LS Provides 0-2.25" Front Lift Coil Rear Spring	Front
2002	Chevrolet	Trailblazer	LT Provides 0-2.25" Front Lift Coil Rear Spring	Front
2002	Chevrolet	Trailblazer	LTZ Provides 0-2.25" Front Lift Coil Rear Spring	Front
2002	Chevrolet	Trailblazer	North Face Provides 0-2.25" Front Lift Coil Rear Spring	Front
2002	Chevrolet	Trailblazer EXT	LT Provides 0-2.25" Front Lift	Front
2002	Chevrolet	Trailblazer EXT	North Face Provides 0-2.25" Front Lift	Front
2002	GMC	Envoy	SLE Provides 0-2.25" Front Lift	Front
2002	GMC	Envoy	SLT Provides 0-2.25" Front Lift	Front
2002	GMC	Envoy XL	SLE Provides 0-2.25" Front Lift	Front
2002	GMC	Envoy XL	SLT Provides 0-2.25" Front Lift	Front
