If provided, we'll verify fitment before your order ships and contact you if the selected part is incompatible. Enter your VIN, then add the product to your cart.
Product details
Part NameShock Absorber
PositionFront
BrandBilstein
Country of ManufactureUnited States
Part Number24-268189
UPC651860822969
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

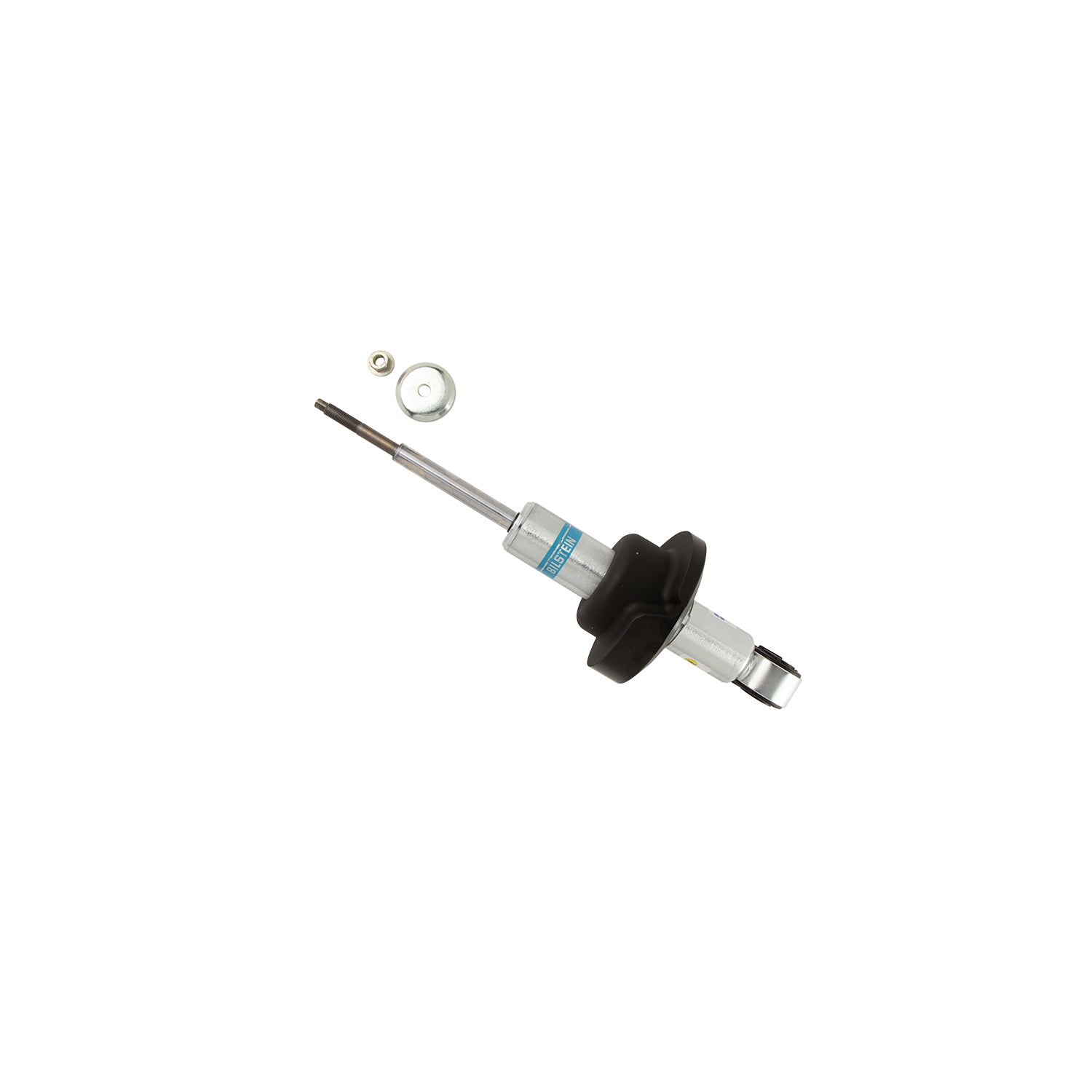

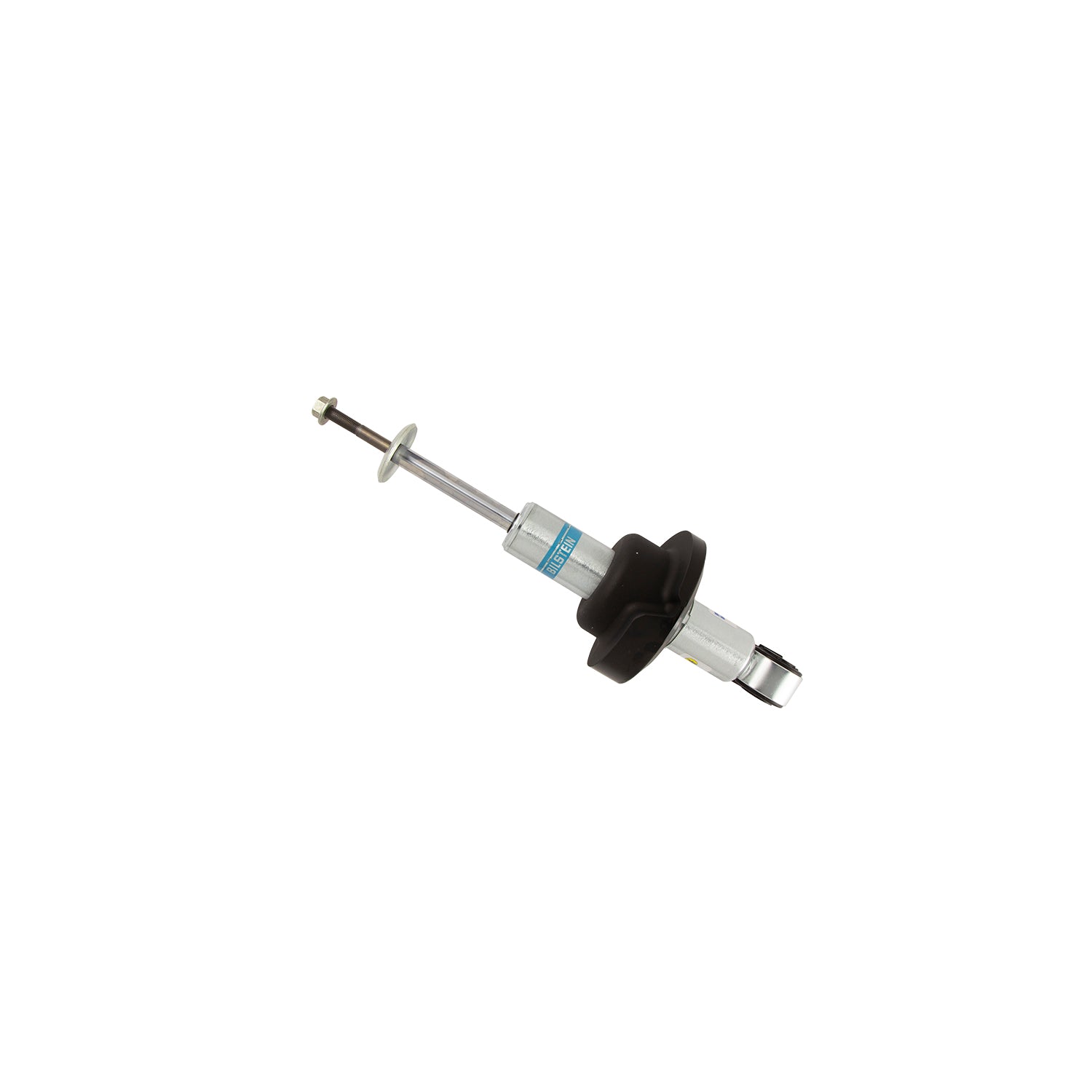

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Characteristics include:
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):10.94
Collapsed Length (MM):278.0
Extended Length (IN):15.31
Extended Length (MM):389.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14mm
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100 (Ride Height Adjustable)
Shaft Diameter:18mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):4.37
Stroke/Travel Length (mm):111.0
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2024
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2024
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2024
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2023
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2023
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2023
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2023
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2022
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2022
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2022
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2022
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2021
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2021
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2021
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2021
Nissan
TITAN
SL
Provides 0-2.2" Front Lift
Front
2021
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2020
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2020
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2020
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2020
Nissan
TITAN
SL
Provides 0-2.2" Front Lift
Front
2020
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2019
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2019
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2019
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2019
Nissan
TITAN
SL
Provides 0-2.2" Front Lift
Front
2019
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2018
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2018
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2018
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2018
Nissan
TITAN
SL
Provides 0-2.2" Front Lift
Front
2018
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
2017
Nissan
TITAN
Platinum Reserve
Provides 0-2.2" Front Lift
Front
2017
Nissan
TITAN
PRO-4X
Provides 0-2.2" Front Lift
Front
2017
Nissan
TITAN
S
Provides 0-2.2" Front Lift
Front
2017
Nissan
TITAN
SL
Provides 0-2.2" Front Lift
Front
2017
Nissan
TITAN
SV
Provides 0-2.2" Front Lift
Front
