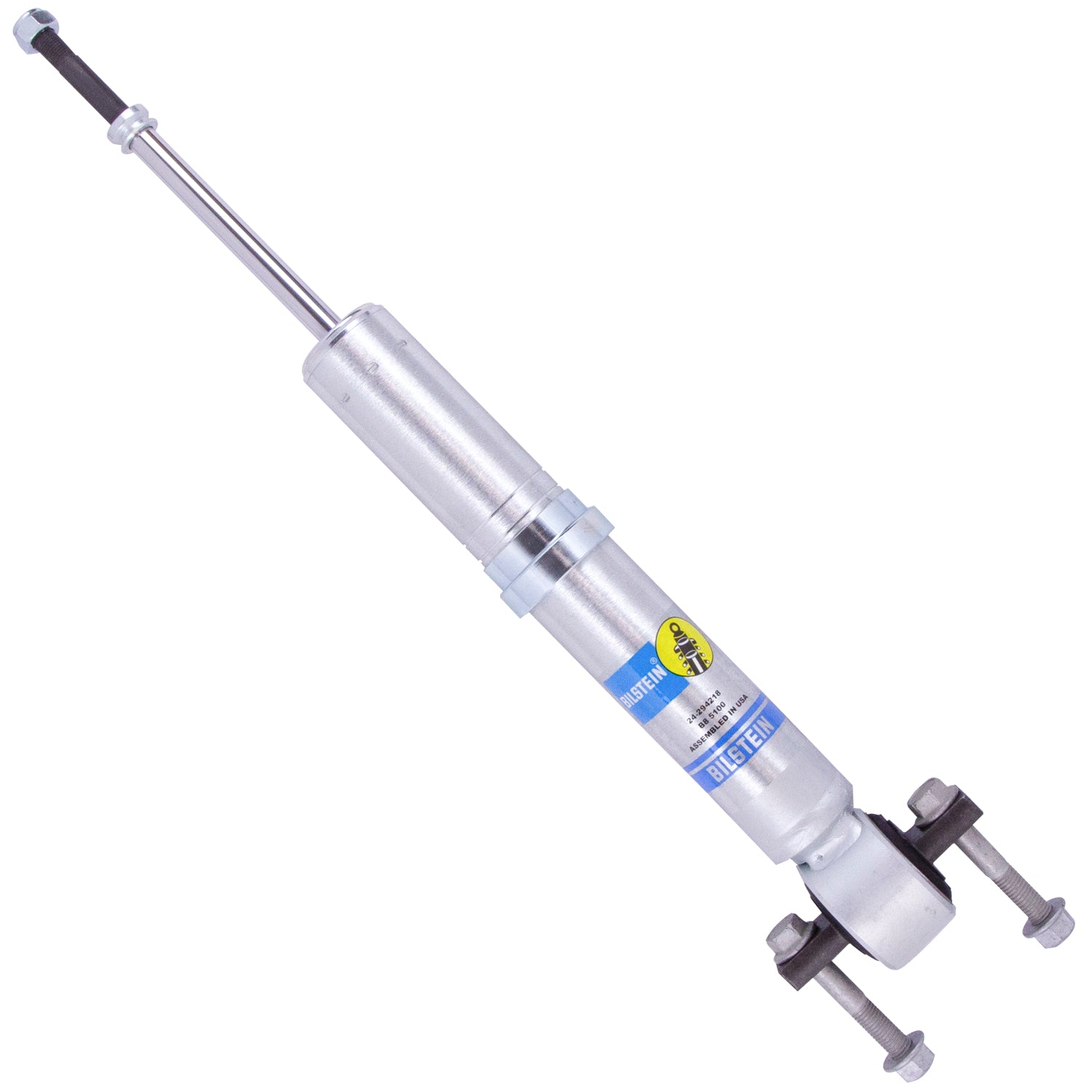

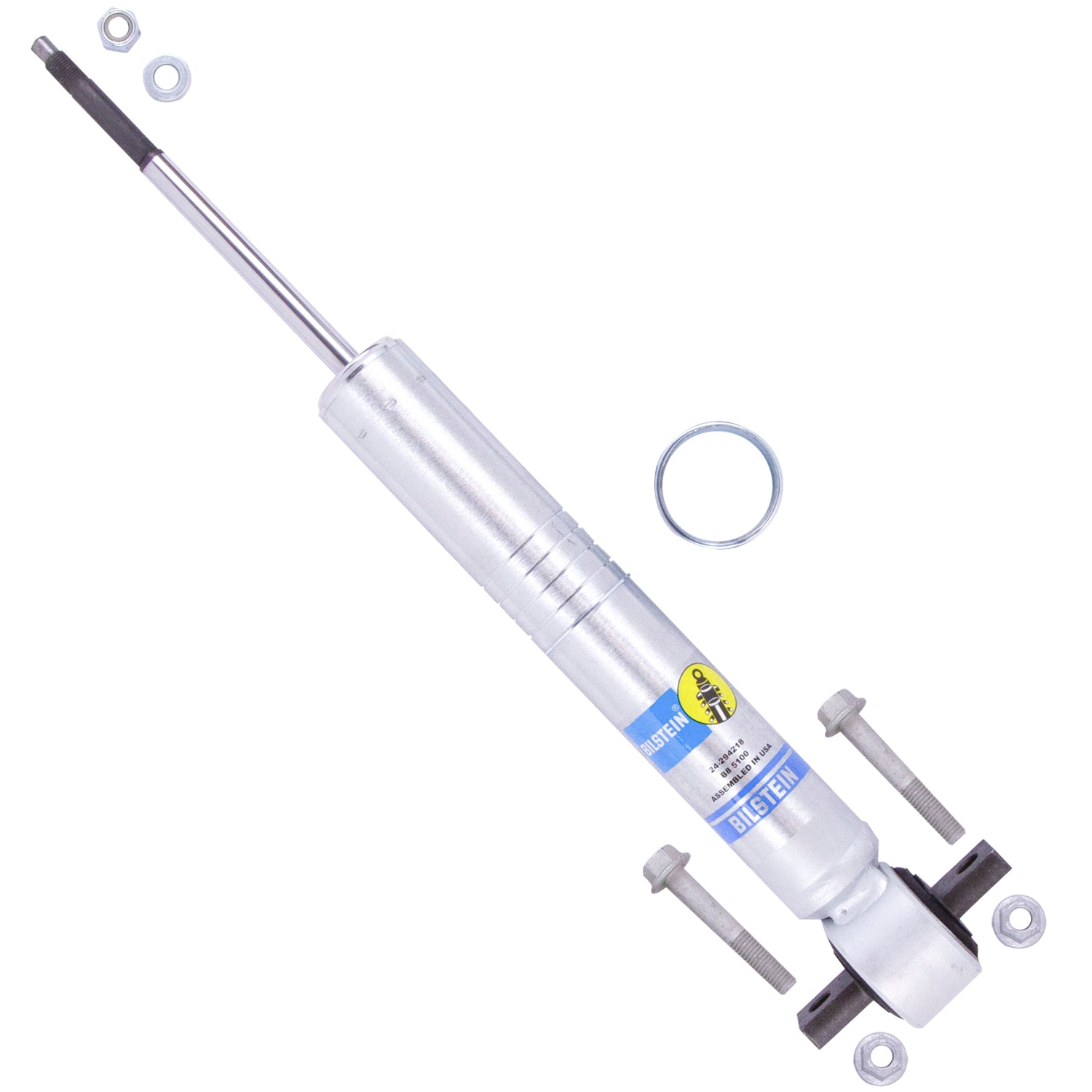

Bilstein 24-294218 B8 5100 (Ride Height Adjustable) - Suspension Shock Absorber

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting.  Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

Characteristics include:

• Adjustable Damping:Non-Adjustable
• Body Design:Snap Ring Grooved Body (Coilover)
• Boot Included:No
• Collapsed Length (IN):14.59
• Collapsed Length (MM):370.5
• Extended Length (IN):19.26
• Extended Length (MM):489.2
• Finish:Zinc Plated
• Internal Design:Monotube
• Lower Mount Type:Crossbar
• PartType:Shocks / Struts
• Piston Diameter:46mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:No
• Segment:Light Truck
• Series:B8 5100 (Ride Height Adjustable)
• Shaft Diameter:14mm
• Spring Seat Included:No - Reuse OEM
• Stroke/Travel Length (IN):4.67
• Stroke/Travel Length (mm):118.6
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Stem

Some of the interchangeable part numbers are:
