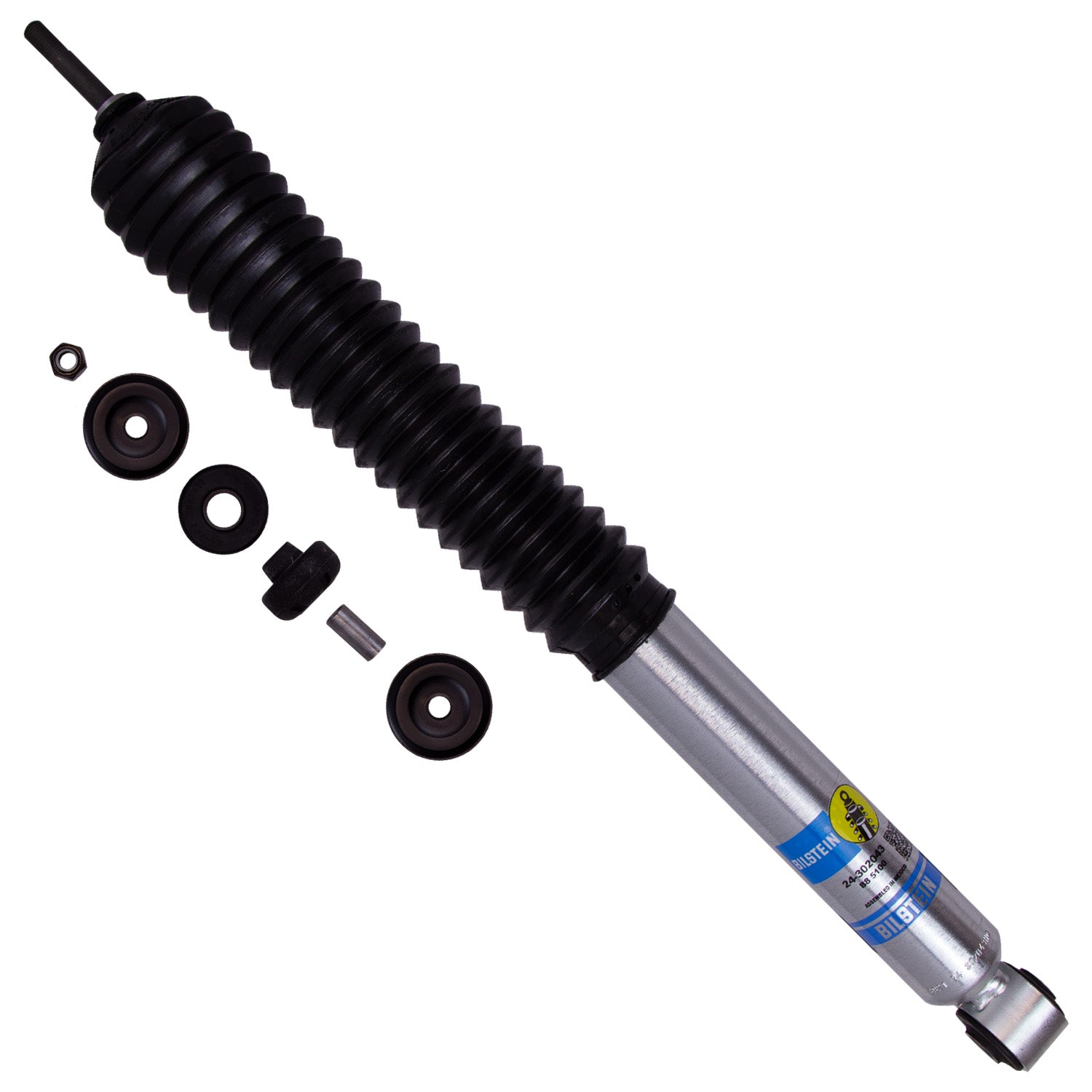

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique velocity sensitive digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality handling and comfort.
Characteristics include:
Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Non-coilover)
Boot Included:Black Bellows
Collapsed Length (IN):16.48
Collapsed Length (MM):418.5
Extended Length (IN):24.96
Extended Length (MM):634.0
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.4mm
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100
Shaft Diameter:12mm
Spring Seat Included:No
Stroke/Travel Length (IN):8.48
Stroke/Travel Length (mm):215.4
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2025
Ram
2500
Big Horn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2025
Ram
2500
Laramie
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2025
Ram
2500
Limited Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2025
Ram
2500
Limited
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2025
Ram
2500
Lone Star
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2025
Ram
2500
Rebel
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2025
Ram
2500
Tradesman
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Big Horn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Laramie
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Limited Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Limited
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Lone Star
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Rebel
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2024
Ram
2500
Tradesman
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Big Horn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Laramie
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Limited Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Limited
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Lone Star
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Rebel
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2023
Ram
2500
Tradesman
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2022
Ram
2500
Big Horn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2022
Ram
2500
Laramie
Without Air Leveling Suspension; Fits Vehicles With 0-1" Rear Lift
4WD
Coil Rear Spring
Rear
2022
Ram
2500
Limited Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2022
Ram
2500
Limited
Without Air Leveling Suspension; Fits Vehicles With 0-1" Rear Lift
4WD
Coil Rear Spring
Rear
2022
Ram
2500
Lone Star
Without Air Leveling Suspension; Fits Vehicles With 0-1" Rear Lift
4WD
Coil Rear Spring
Rear
2022
Ram
2500
Tradesman
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Big Horn
Without Air Leveling Suspension; Fits Vehicles With 0-1" Rear Lift
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Laramie Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Laramie
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Limited Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Limited
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Lone Star
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2021
Ram
2500
Tradesman
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2020
Ram
2500
Big Horn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2020
Ram
2500
Laramie Longhorn
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2020
Ram
2500
Laramie
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2020
Ram
2500
Limited
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2020
Ram
2500
Lone Star
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
4WD
Coil Rear Spring
Rear
2020
Ram
2500
Tradesman
Fits Vehicles With 0-1" Rear Lift; Without Air Leveling Suspension
