Product details
Part NameShock Absorber
PositionFront
BrandBilstein
Country of ManufactureMexico
Part Number24-323758
UPC651860917177
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.
Included warranty:
For warranty coverage information, please see our
Warranty Policy.

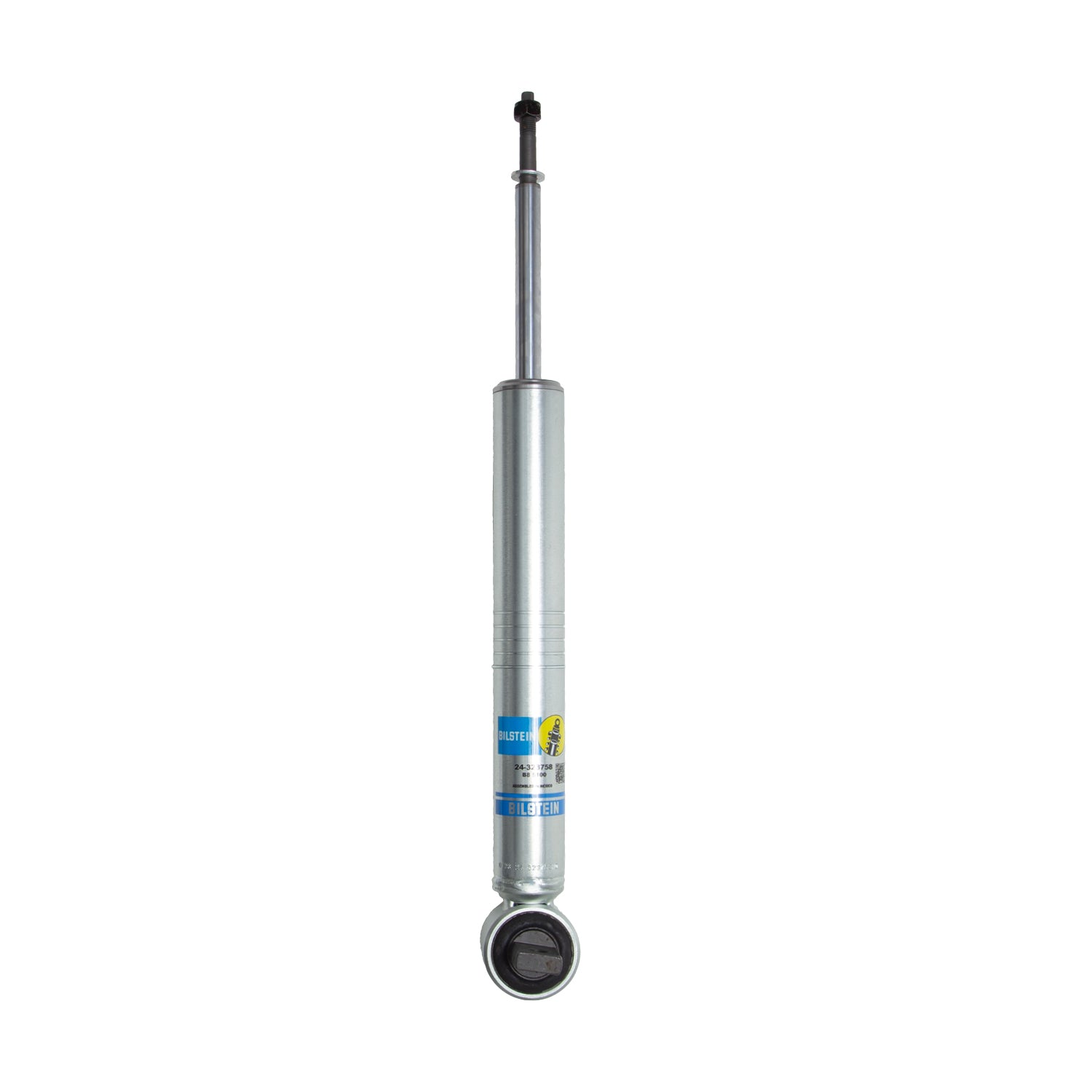

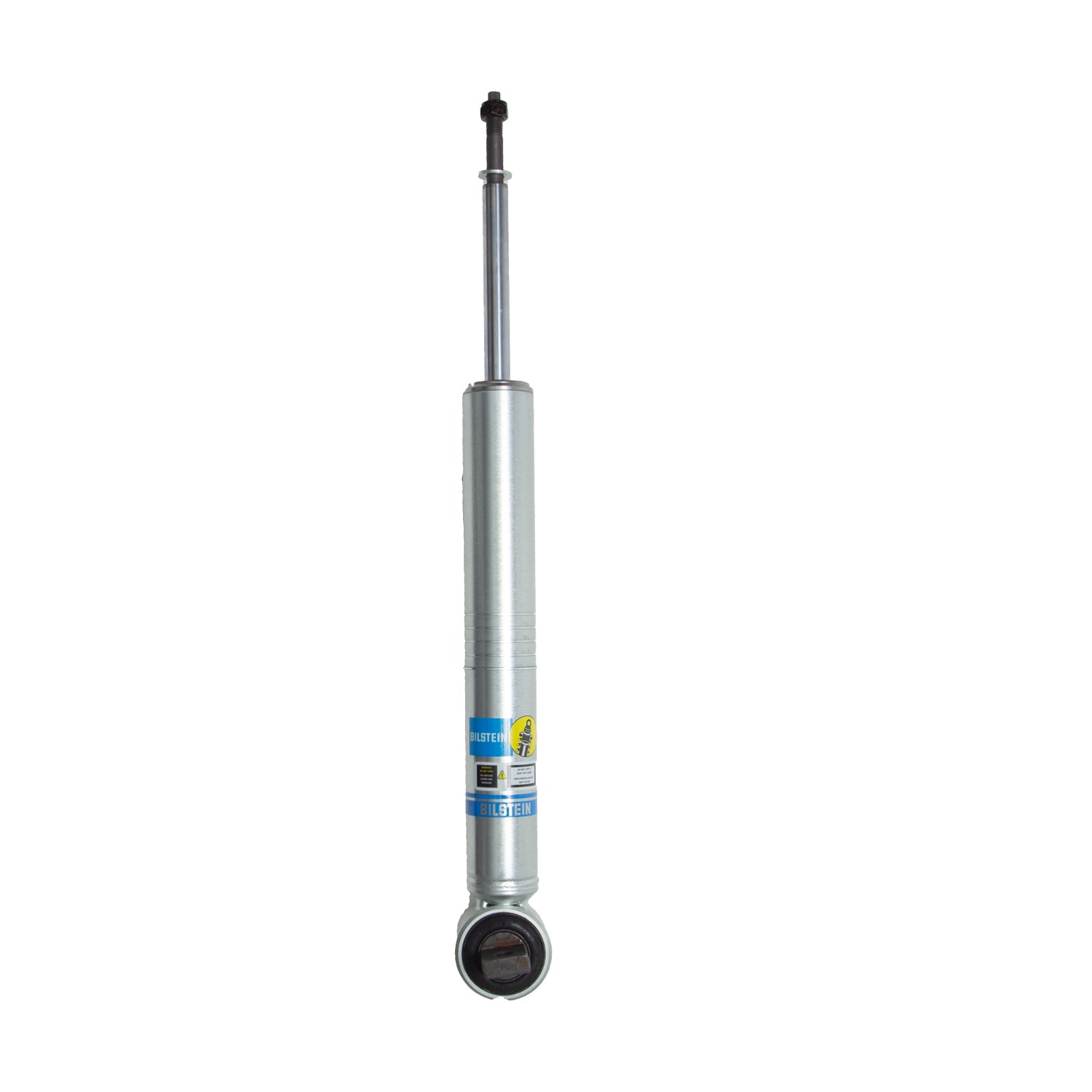

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Characteristics include:
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):15.63
Collapsed Length (MM):397.0
Extended Length (IN):21.00
Extended Length (MM):533.5
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Crossbar
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100 (Ride Height Adjustable)
Shaft Diameter:18mm
Spring Seat Included:No
Stroke/Travel Length (IN):5.37
Stroke/Travel Length (mm):136.4
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2025
Ford
F-150
STX
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2025
Ford
F-150
XL
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2025
Ford
F-150
XLT
Provides 0-2.5" Front Lift; Without Continuously Controlled Damping
RWD
Front
2024
Ford
F-150
STX
Provides 0-2.5" Front Lift; Without Continuously Controlled Damping
RWD
Front
2024
Ford
F-150
XL
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2024
Ford
F-150
XLT
Provides 0-2.5" Front Lift; Without Continuously Controlled Damping
RWD
Front
2023
Ford
F-150
King Ranch
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2023
Ford
F-150
Lariat
Provides 0-2.5" Front Lift; Without Continuously Controlled Damping
RWD
Front
2023
Ford
F-150
Platinum
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2023
Ford
F-150
XL
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2023
Ford
F-150
XLT
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2022
Ford
F-150
King Ranch
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2022
Ford
F-150
Lariat
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2022
Ford
F-150
Platinum
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2022
Ford
F-150
XL
Provides 0-2.5" Front Lift; Without Continuously Controlled Damping
RWD
Front
2022
Ford
F-150
XLT
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2021
Ford
F-150
King Ranch
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2021
Ford
F-150
Lariat
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2021
Ford
F-150
Limited
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2021
Ford
F-150
Platinum
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2021
Ford
F-150
XL
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
2021
Ford
F-150
XLT
Without Continuously Controlled Damping; Provides 0-2.5" Front Lift
RWD
Front
