If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.
Included warranty:
For warranty coverage information, please see our
Warranty Policy.

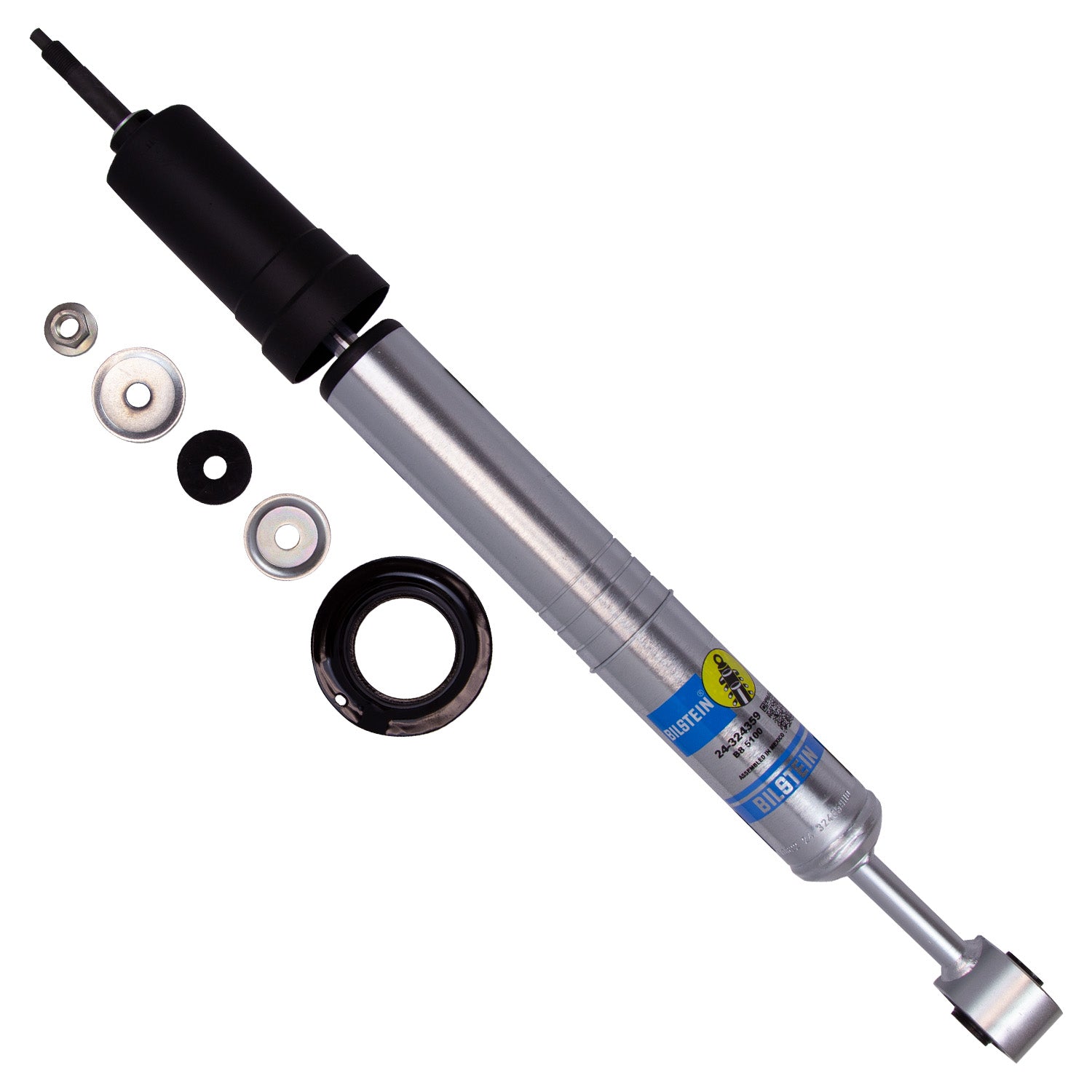

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.
Characteristics include:
Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:Black Straight
Collapsed Length (IN):17.03
Collapsed Length (MM):432.5
Extended Length (IN):22.59
Extended Length (MM):573.7
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.2mm
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 5100 (Ride Height Adjustable)
Shaft Diameter:14mm

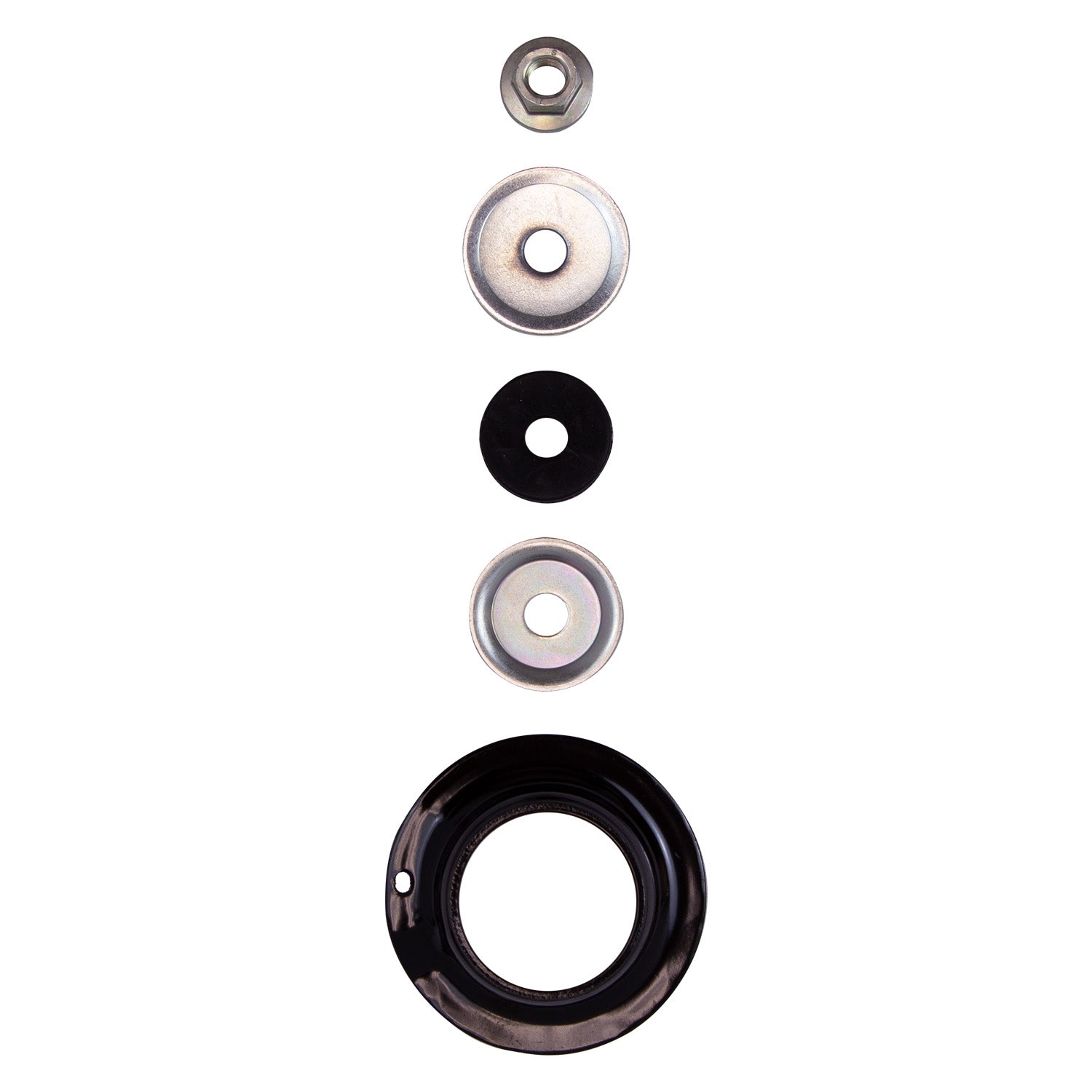

Spring Seat Included:Yes
Stroke/Travel Length (IN):5.56
Stroke/Travel Length (mm):141.2
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2015
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2015
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2014
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2014
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2013
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2013
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2012
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2012
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2011
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2011
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2010
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2010
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2009
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2009
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2009
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2009
Toyota
FJ Cruiser
Base
Provides 0-2.5" Front Lift
Front
2009
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2009
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2008
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2008
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2008
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2008
Toyota
FJ Cruiser
Base
Provides 0-2.5" Front Lift
Front
2008
Toyota
FJ Cruiser
Trail Teams Special Edition
Provides 0-2.5" Front Lift
Front
2008
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2008
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2007
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2007
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2007
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2007
Toyota
FJ Cruiser
Base
Provides 0-2.5" Front Lift
Front
2007
Toyota
FJ Cruiser
TRD Special Edition
Provides 0-2.5" Front Lift
Front
2007
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2007
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2006
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2006
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2006
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2006
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2006
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2005
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2005
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2005
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2005
Toyota
Tacoma
Base
Provides 0-2.5" Front Lift
4WD
Front
2005
Toyota
Tacoma
Pre Runner
Provides 0-2.5" Front Lift
Front
2004
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2004
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2004
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2003
Lexus
GX470
Base
Provides 0-2.5" Front Lift; Requires use of Toyota Upper Shock Mount Assy 48609-60100
Front
2003
Toyota
4Runner
Limited
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
2003
Toyota
4Runner
SR5
Provides 0-2.5" Front Lift; Without X-REAS Suspension
Front
