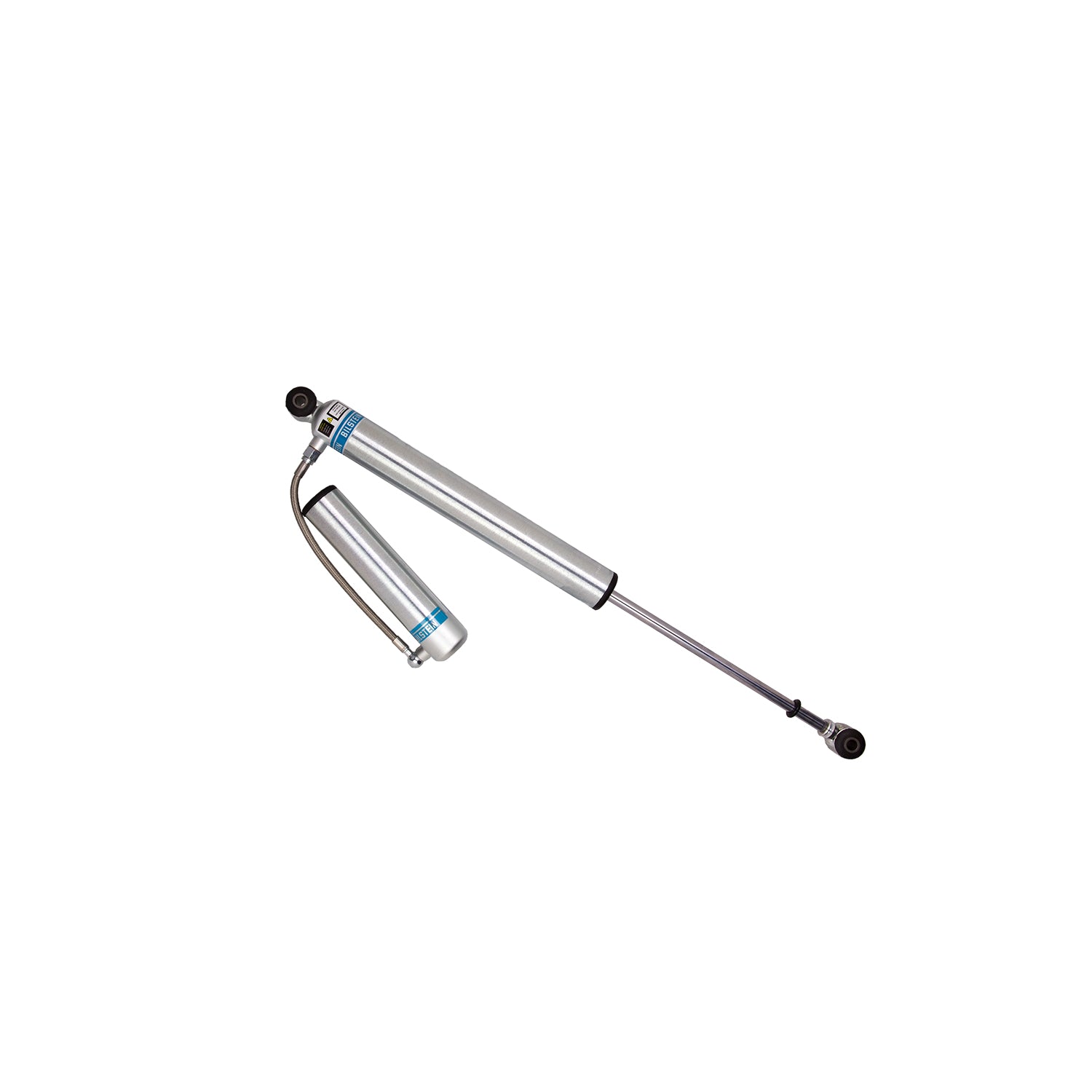

Bilstein 25-255096 B8 5160 - Suspension Shock Absorber

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

Characteristics include:

• Adjustable Damping:Non-Adjustable
• Billet Reservoir Clamp Included:No
• Body Design:Smooth Body (Non-Coilover)
• Boot Included:No
• Collapsed Length (IN):17.44
• Collapsed Length (MM):443.0
• Extended Length (IN):28.90
• Extended Length (MM):734.0
• Finish:Zinc Plated
• Internal Design:Monotube
• Lower Mount Type:Eye 12mm
• Optional Reservoir Clamp:11-176015
• PartType:Shocks / Struts
• Piston Diameter:46mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:Yes
• Segment:Light Truck
• Series:B8 5160
• Shaft Diameter:14mm
• Spring Seat Included:No
• Stroke/Travel Length (IN):11.46
• Stroke/Travel Length (mm):291.1
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Eye 12mm
