If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.
Included warranty:
For warranty coverage information, please see our
Warranty Policy.

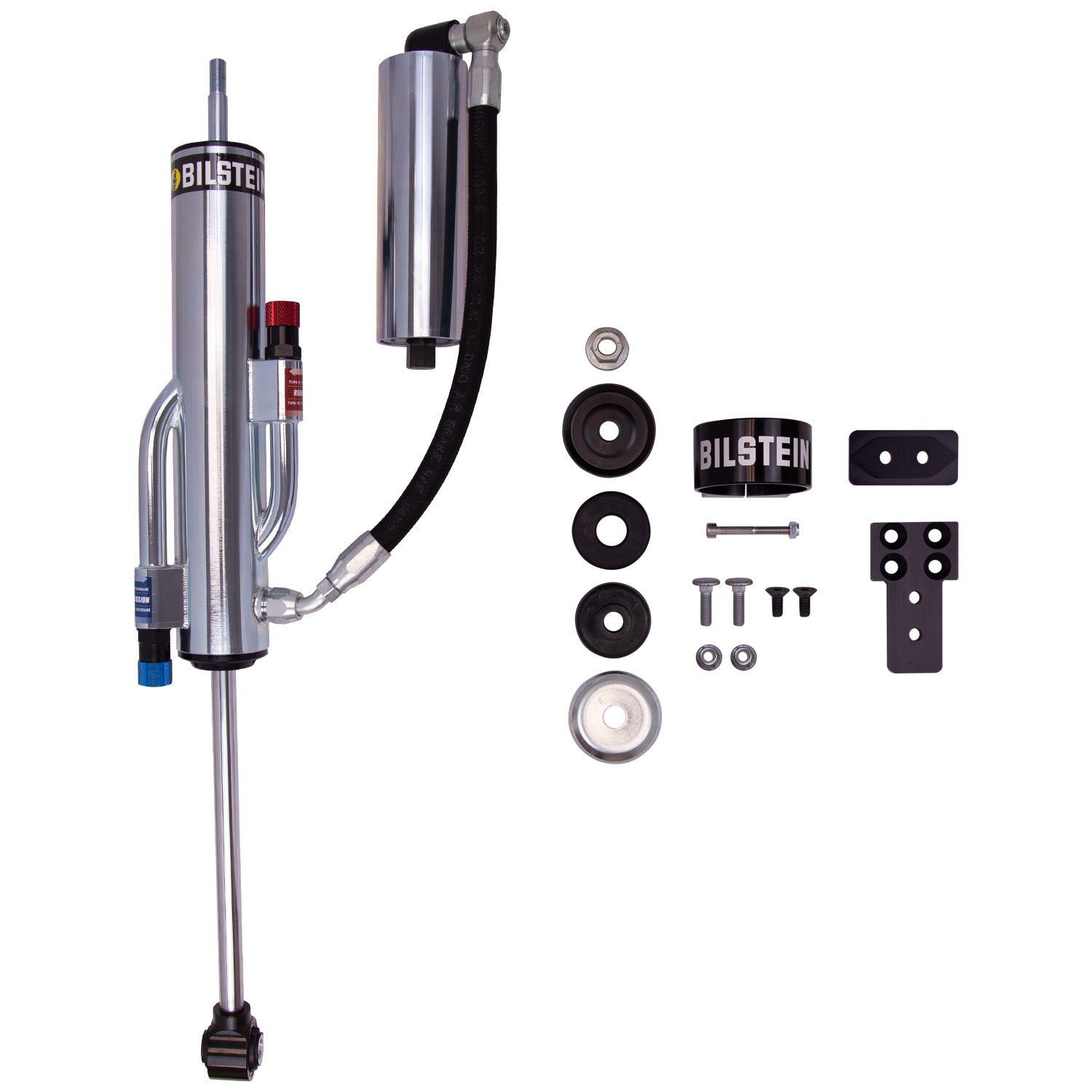

Bilstein B8 8100 (Bypass) is a direct fit position sensitive damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose remote reservoir exit port delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience offering unparalleled ride comfort and incredible bottom out control.
Characteristics include:
Adjustable Damping:Double Adjustable Compression and Rebound with Click Adjuster Knobs
Body Design:Bypass Body (Non-Coilover)
Boot Included:No
Collapsed Length (IN):15.69
Collapsed Length (MM):398.5
Extended Length (IN):25.82
Extended Length (MM):655.9
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 14.1mm
PartType:Shocks / Struts
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:Yes
Segment:Light Truck
Series:B8 8100 (Bypass)
Shaft Diameter:18mm
Spring Seat Included:No
Title:Bilstein Shock Absorbers
Upper Mount Type:Stem
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2024
Ram
1500
Big Horn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2024
Ram
1500
Laramie
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2024
Ram
1500
Limited Longhorn
Without Air Suspension; 5 ft 7 in Bed; Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift
Coil Rear Spring
Rear Right
2024
Ram
1500
Lone Star
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2024
Ram
1500
Tradesman
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2023
Ram
1500
Big Horn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2023
Ram
1500
Laramie
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2023
Ram
1500
Limited Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2023
Ram
1500
Lone Star
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2023
Ram
1500
Rebel
Fits Vehicles With 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2023
Ram
1500
Tradesman
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2022
Ram
1500
Big Horn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2022
Ram
1500
Laramie
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2022
Ram
1500
Limited Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2022
Ram
1500
Lone Star
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2022
Ram
1500
Rebel
Fits Vehicles With 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2022
Ram
1500
Tradesman
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Big Horn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Laramie Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Laramie
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Limited Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Lone Star
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Rebel
Fits Vehicles With 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2021
Ram
1500
Tradesman
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2020
Ram
1500
Big Horn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2020
Ram
1500
Laramie Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2020
Ram
1500
Laramie
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2020
Ram
1500
Lone Star
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2020
Ram
1500
Rebel
Fits Vehicles With 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2020
Ram
1500
Tradesman
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2019
Ram
1500
Big Horn
Without Air Suspension; 5 ft 7 in Bed; Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift
Coil Rear Spring
Rear Right
2019
Ram
1500
Laramie Longhorn
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2019
Ram
1500
Laramie
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2019
Ram
1500
Lone Star
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2019
Ram
1500
Rebel
Fits Vehicles With 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
Coil Rear Spring
Rear Right
2019
Ram
1500
Tradesman
Fits Trucks without factory Off-Road Package and with 0-2" Rear Lift; Fits Trucks with factory Off-Road Package and with 0-1" Rear Lift; 5 ft 7 in Bed; Without Air Suspension
