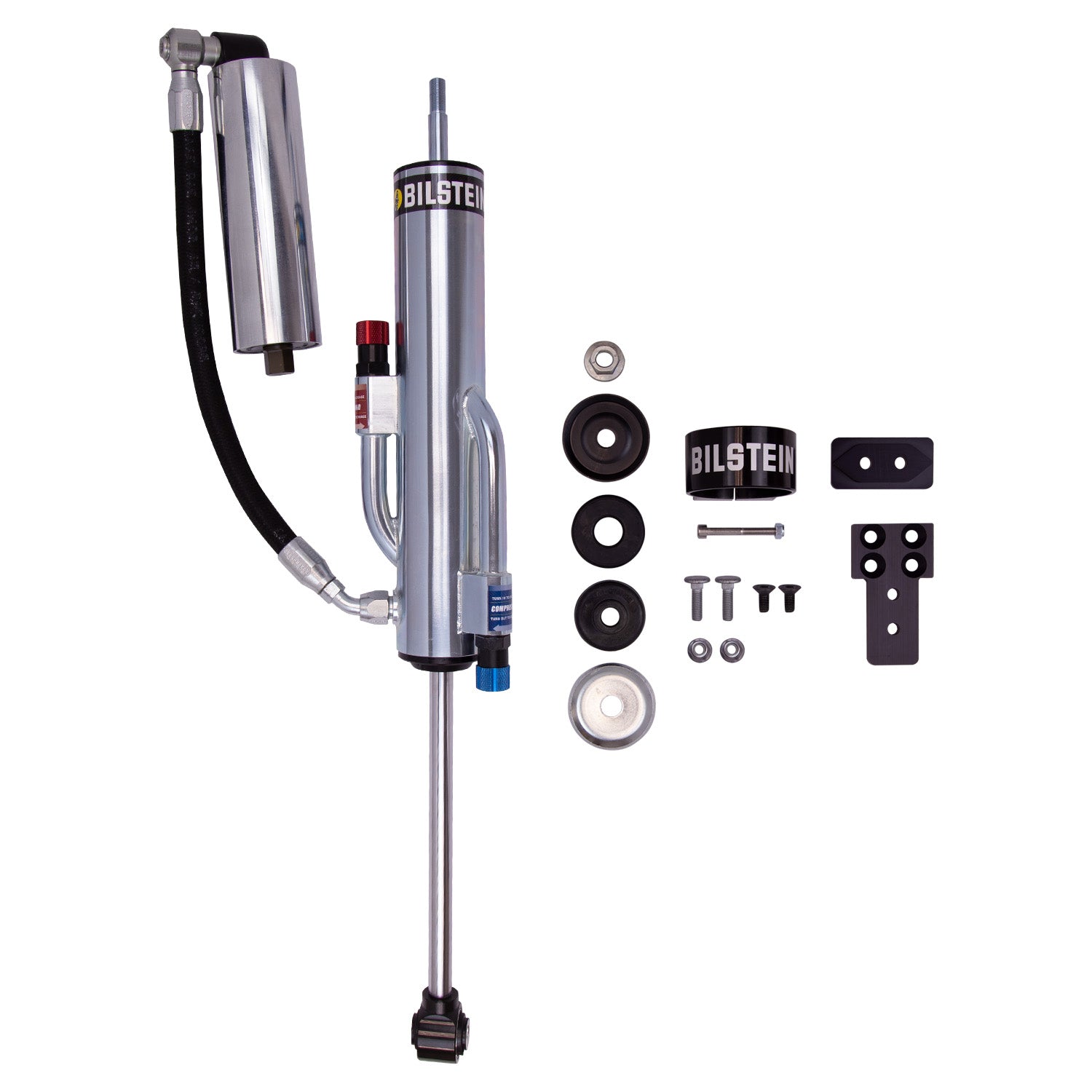

Bilstein 25-281804 B8 8100 (Bypass) - Suspension Shock Absorber

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

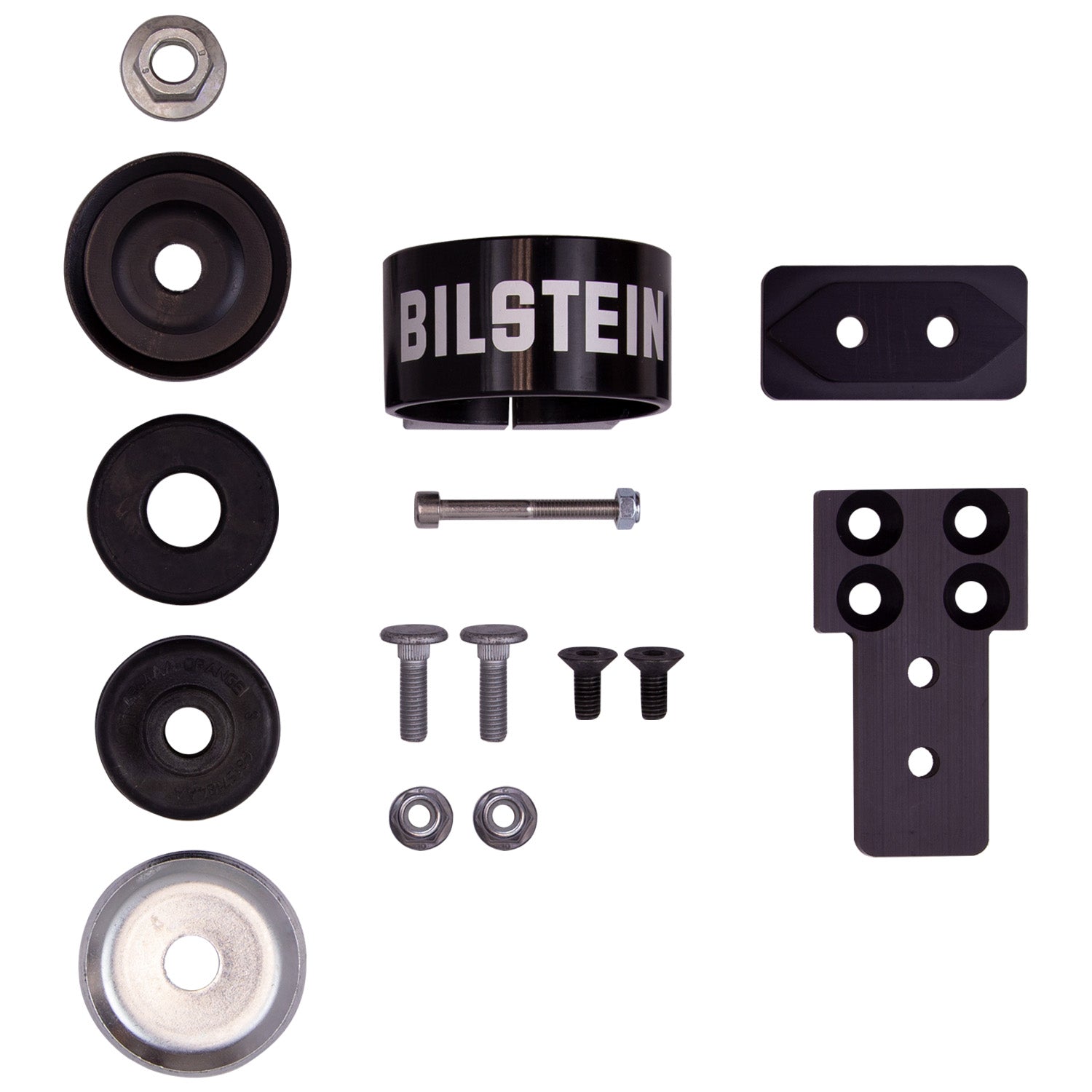

Bilstein B8 8100 (Bypass) is a direct fit position sensitive damper for light trucks and SUV’s. These motorsports inspired shock absorbers utilize a dual tube externally adjustable bypass design. B8 8100 (Bypass) feature “Incremental Flow” bypass adjusters allowing for finite and incremental changes for rebound and compression. The shocks utilize a bottom hose remote reservoir exit port delivering increased compression control during the full cycle. The remote reservoir is supplied with a bolt-on aluminum anodized chassis mount for an easy fitment. BILSTEIN B8 8100 (Bypass) will maximize the driver experience offering unparalleled ride comfort and incredible bottom out control.

Characteristics include:

• Adjustable Damping:Double Adjustable Compression and Rebound with Click Adjuster Knobs
• Body Design:Bypass Body (Non-Coilover)
• Boot Included:No
• Collapsed Length (IN):15.69
• Collapsed Length (MM):398.5
• Extended Length (IN):25.82
• Extended Length (MM):655.9
• Finish:Zinc Plated
• Internal Design:Monotube
• Lower Mount Type:Eye 14.1mm
• PartType:Shocks / Struts
• Piston Diameter:60mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:Yes
• Segment:Light Truck
• Series:B8 8100 (Bypass)
• Shaft Diameter:18mm
• Spring Seat Included:No
• Title:Bilstein Shock Absorbers
• Upper Mount Type:Stem

Some of the interchangeable part numbers are:
