Product details
Part NameShock Absorber
BrandBilstein
Country of ManufactureMexico
Part Number33-230313
UPC651860727349
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.
Included warranty:
For warranty coverage information, please see our
Warranty Policy.

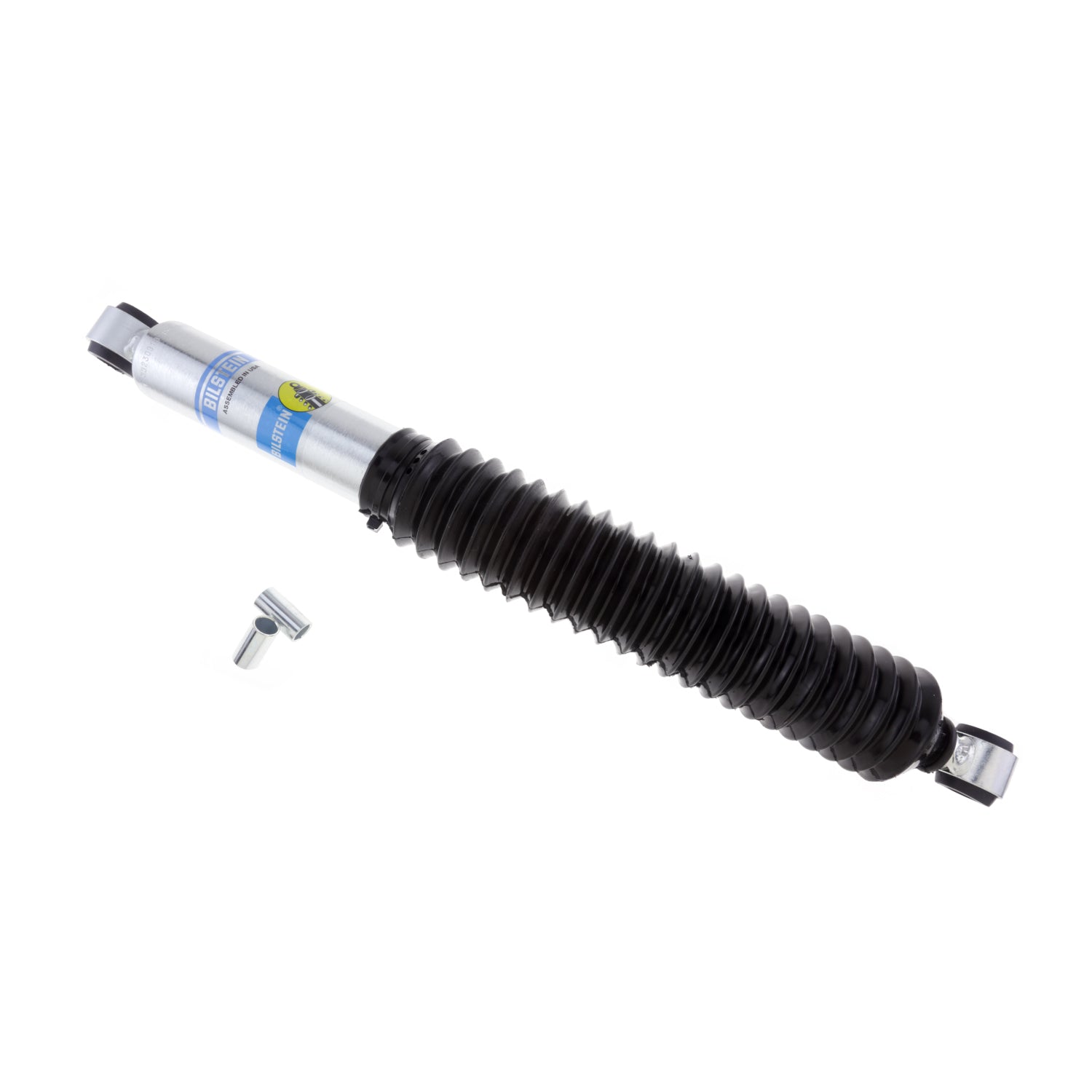

Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Characteristics include:
Adjustable Damping:Non-Adjustable
Body Design:Smooth Body (Non-Coilover)
Boot Included:Black Bellows
Collapsed Length (IN):13.66
Collapsed Length (MM):347.0
Compression @0.52m/s:595
Extended Length (IN):21.70
Extended Length (MM):551.2
Finish:Zinc Plated
Internal Design:Monotube
Lower Mount Type:Eye 5/8in
Mount Type:Eye-to-Eye
PartType:Shocks / Struts
Piston Diameter:46mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Rebound @0.52m/s:1810
Reservoir:No
Segment:Light Truck
Series:B8 5125
Shaft Diameter:14mm
Spring Seat Included:No
Stroke/Travel Length (IN):8.04
Stroke/Travel Length (mm):204.2
Title:Bilstein Shock Absorbers
Upper Mount Type:Eye 5/8in
Some of the interchangeable part numbers are:
