Bilstein 47-311190 B8 6112 - Suspension Kit

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has 2-year limited warranty.

• Warranty starts from the date of delivery.
• Proof of purchase required for all claims.
• Covers manufacturing defects only.
• Does not cover normal wear & tear.
• Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

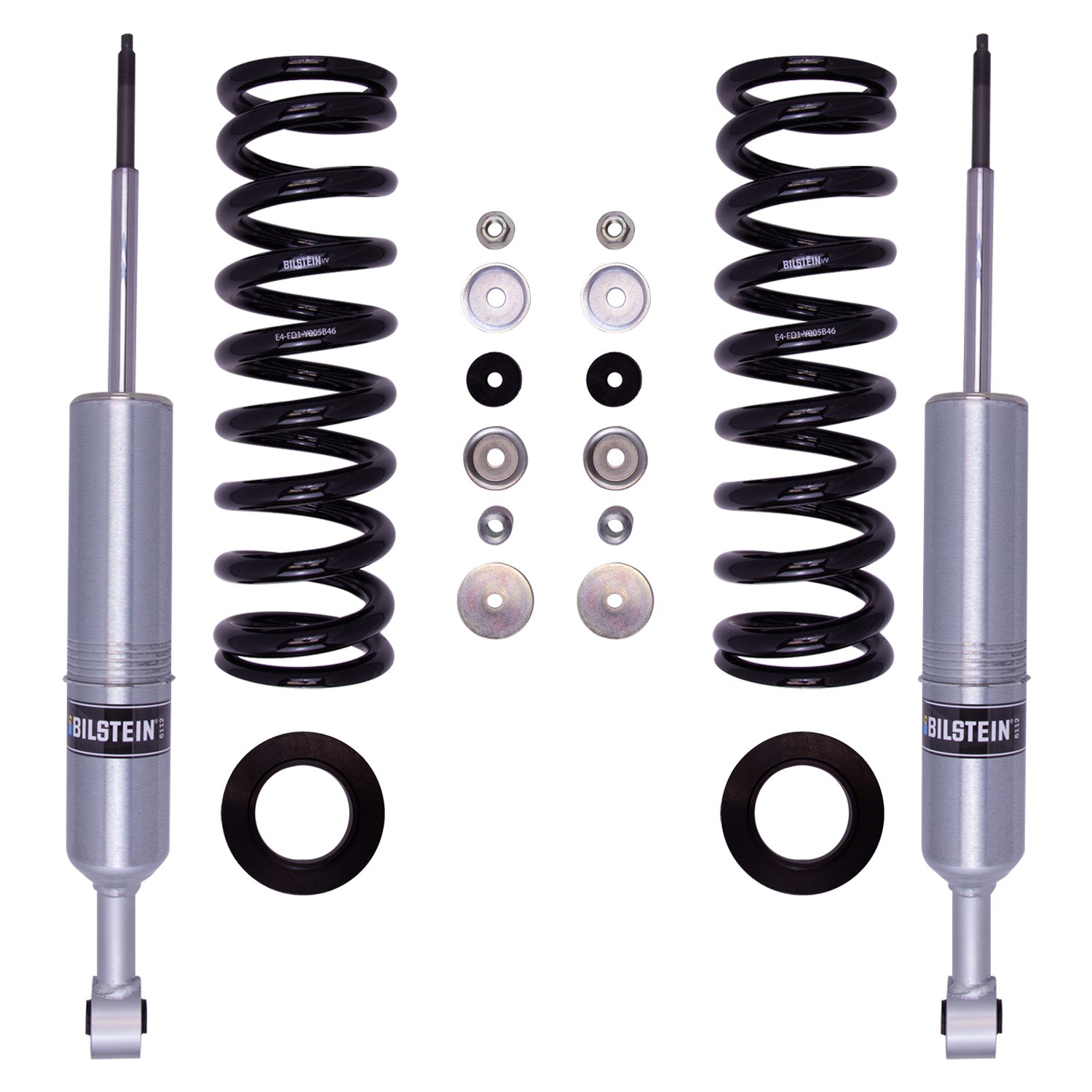

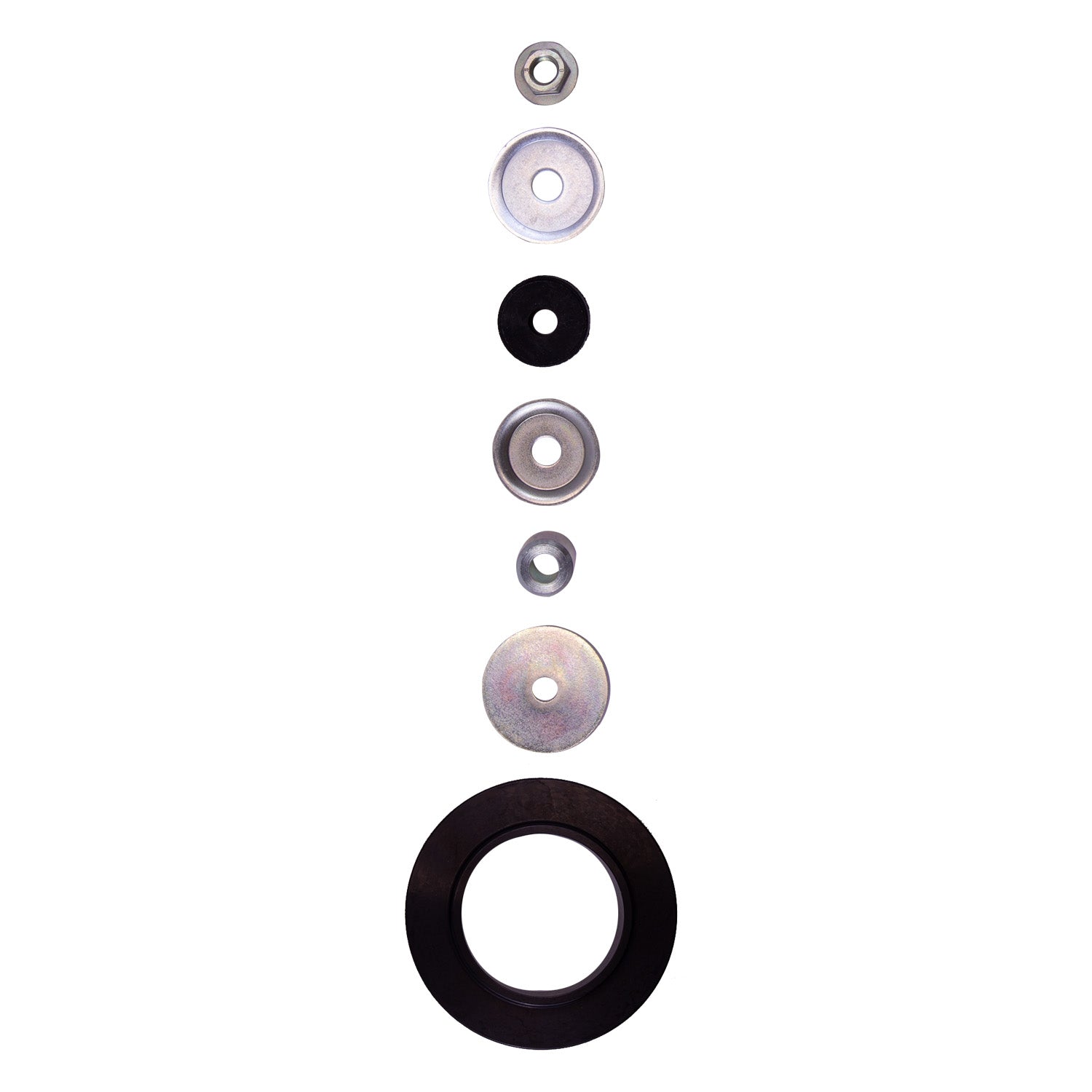

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Characteristics include:

• Body Design:Snap Ring Grooved Body (Coilover)
• Boot Included:No
• Collapsed Length (IN):16.82
• Collapsed Length (mm):427.3
• Extended Length (IN):21.61
• Extended Length (mm):549.0
• Finish:Dampers: Zinc Plated/Springs: Black
• Front Main Spring Rate (lbs/in):700
• Internal Design:Monotube
• PartType:Suspension Kit
• Piston Diameter:60mm
• Prop 65 (Y/N):Y
• Prop 65 - Short Label:WARNING: Cancer &amp
• Reproductive Harm - www.P65Warnings.ca.gov
• Reservoir:No
• Segment:Light Truck
• Series:B8 6112
• Shaft Diameter:18mm
• Spring Seat Included:Yes
• Stroke/Travel Length (IN):4.79
• Stroke/Travel Length (mm):121.7
• Title:Bilstein Shock Absorbers
