Bilstein 47-314009 B8 6112 - Suspension Kit

Bilstein 47-314009 B8 6112 - Suspension Kit

Name: Bilstein 47-314009 B8 6112 - Suspension Kit
Brand: Bilstein
SKU: BLS-47-314009
Price: 1114.0 USD
Availability: InStock
Rating: 4.9 (362 reviews)

SKU: BLS-47-314009

Product details

Part Name Suspension Kit
Position Rear
Brand Bilstein
Country of Manufacture United States
Part Number 47-314009
UPC 651860900599

Estimate Delivery Date

State

Have Questions?

Ask our experts via Live Chat at the bottom right corner of this page.

Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Included warranty:

This product has life-time limited warranty.

Warranty starts from the date of delivery.
Proof of purchase required for all claims.
Covers manufacturing defects only.
Does not cover normal wear & tear.
Does not cover cosmetic damage or rust damage.

To initiate a claim, simply send an email to support@partspioneer.ca. For more information, read our Warranty Policy.

Choose Bilstein because:

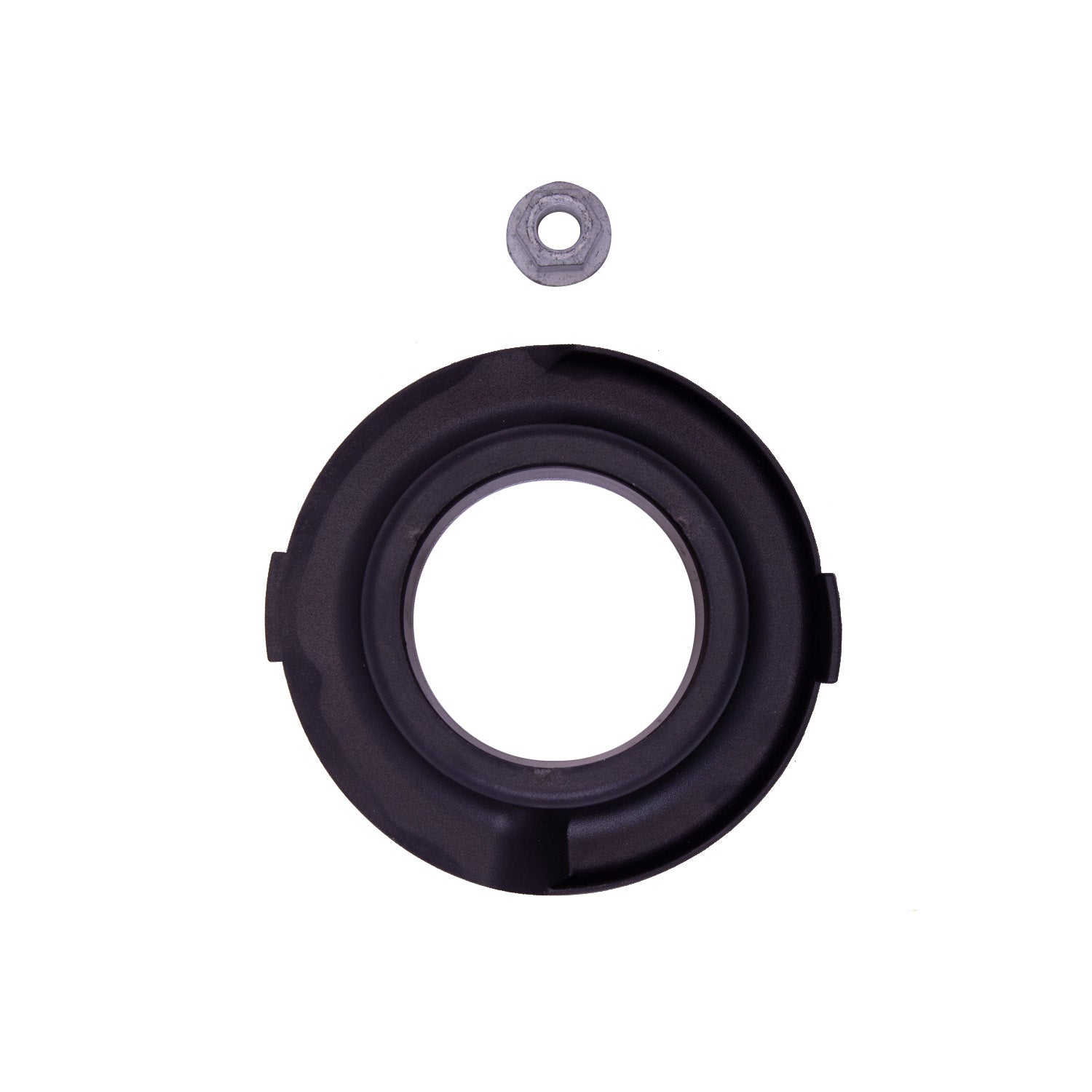

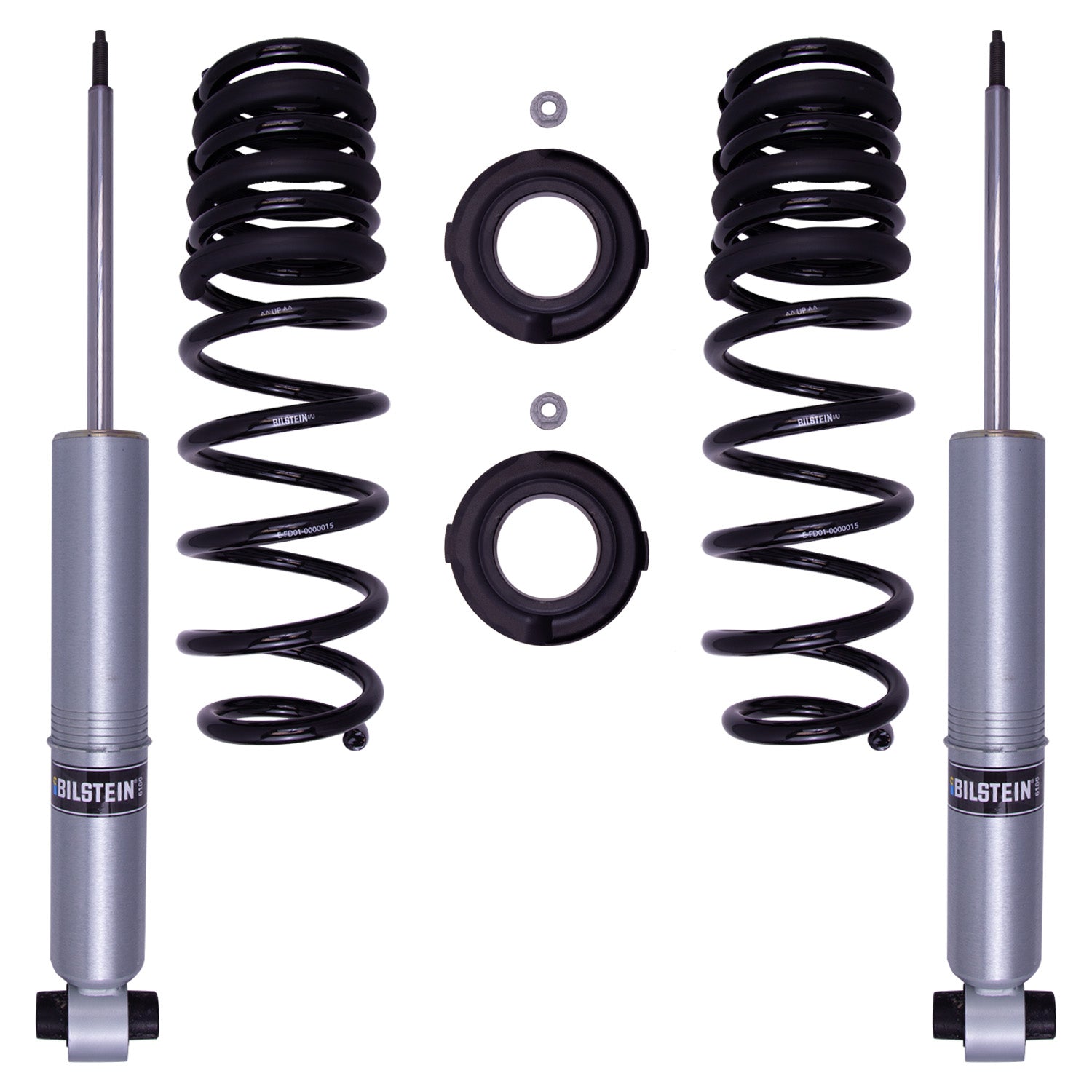

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.

Characteristics include:

Adjustable Damping:Non-Adjustable
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):17.11
Collapsed Length (mm):434.6
Extended Length (IN):25.56
Extended Length (mm):649.3
Finish:Dampers: Zinc Plated/Springs: Black
Internal Design:Monotube
PartType:Suspension Kit
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &amp
Reproductive Harm - www.P65Warnings.ca.gov
Rear Main Spring Rate (lbs/in):288
Reservoir:No
Segment:Light Truck
Series:B8 6112
Shaft Diameter:18mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):8.45
Stroke/Travel Length (mm):214.7
Title:Bilstein Shock Absorbers

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year	Make	Model	Notes	Position
2025	Ford	Bronco	Badlands Provides 1.2-2.3" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package; Without HOSS 3.0 Package 4 Door	Rear
2025	Ford	Bronco	Base Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2025	Ford	Bronco	Big Bend Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2025	Ford	Bronco	Heritage Edition Provides 0.3-1.4" Rear Lift 4 Door	Rear
2025	Ford	Bronco	Outer Banks Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2024	Ford	Bronco	Badlands Provides 1.2-2.3" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2024	Ford	Bronco	Big Bend Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2024	Ford	Bronco	Black Diamond Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2024	Ford	Bronco	Everglades Provides 0.3-1.4" Rear Lift 4 Door	Rear
2024	Ford	Bronco	Heritage Edition Provides 0.3-1.4" Rear Lift 4 Door	Rear
2024	Ford	Bronco	Heritage Limited Edition Provides 0.3-1.4" Rear Lift 4 Door	Rear
2024	Ford	Bronco	Outer Banks Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2023	Ford	Bronco	Badlands Provides 1.2-2.3" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2023	Ford	Bronco	Base Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2023	Ford	Bronco	Big Bend Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2023	Ford	Bronco	Black Diamond Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2023	Ford	Bronco	Everglades Provides 0.3-1.4" Rear Lift 4 Door	Rear
2023	Ford	Bronco	Heritage Edition Provides 0.3-1.4" Rear Lift 4 Door	Rear
2023	Ford	Bronco	Heritage Limited Edition Provides 0.3-1.4" Rear Lift 4 Door	Rear
2023	Ford	Bronco	Outer Banks Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2022	Ford	Bronco	Badlands Provides 1.2-2.3" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2022	Ford	Bronco	Base Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2022	Ford	Bronco	Big Bend Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2022	Ford	Bronco	Black Diamond Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2022	Ford	Bronco	Outer Banks Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2022	Ford	Bronco	Wildtrak Provides 0.3-1.4" Rear Lift 4 Door	Rear
2021	Ford	Bronco	Badlands Provides 1.2-2.3" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2021	Ford	Bronco	Base Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2021	Ford	Bronco	Big Bend Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2021	Ford	Bronco	Black Diamond Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2021	Ford	Bronco	First Edition Provides 0.3-1.4" Rear Lift 4 Door	Rear
2021	Ford	Bronco	Outer Banks Provides 1.8-2.8" Rear Lift Without Sasquatch Package; 0.3-1.4" Rear Lift With Sasquatch Package 4 Door	Rear
2021	Ford	Bronco	Wildtrak Provides 0.3-1.4" Rear Lift 4 Door	Rear
