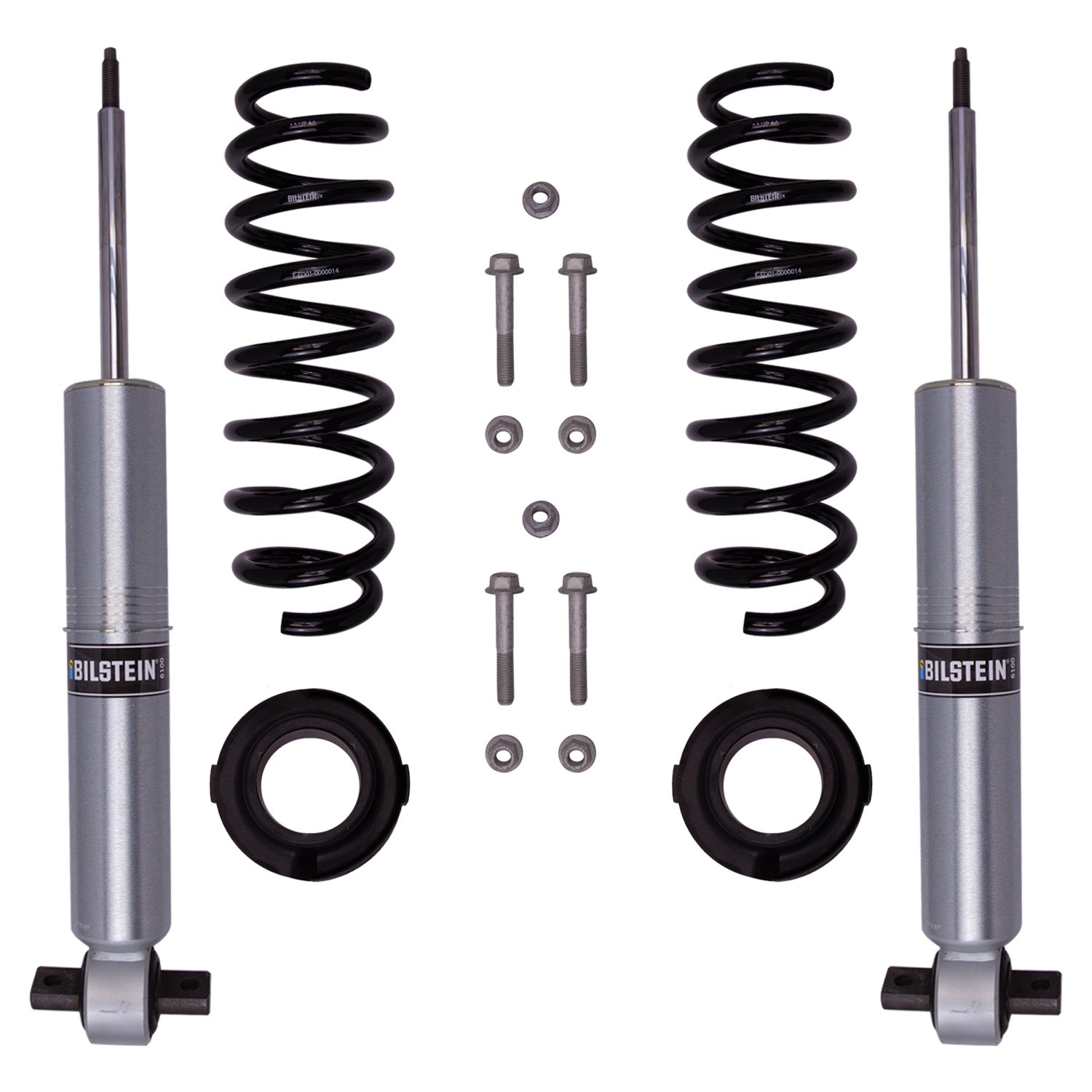

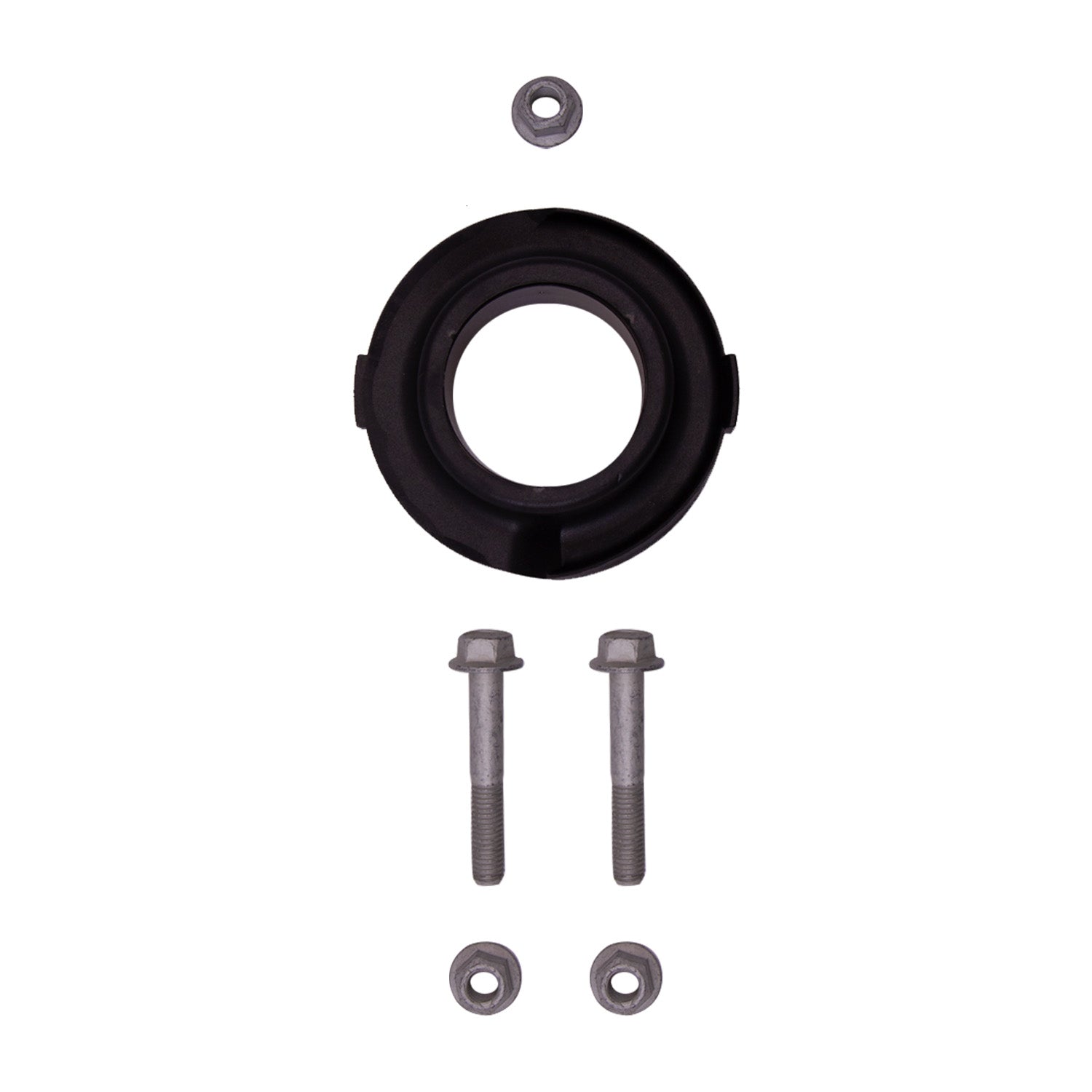

Bilstein B8 6112 leveling kits are designed to provide more ground clearance allow for larger tires and increase wheel travel. Multiple snap-ring grooves in the body allow for different spring seat positions providing 0-2.75 inches of front lift (depending on application). These kits consist of (2) 60mm shock absorbers combined with (2) custom matched cold wound coil springs and (2) billet aluminum spring seats. The large 2.65-in OD body and 60mm digressive piston allows for increased damping control for optimal on-road and off-road capabilities. Experience the legendary Bilstein off-road experience with the best direct fit spring and shock kit for your light truck or SUV.
Characteristics include:
Adjustable Damping:Non-Adjustable
Aftermarket Upper Arms Required:Yes
Body Design:Snap Ring Grooved Body (Coilover)
Boot Included:No
Collapsed Length (IN):16.62
Collapsed Length (mm):422.2
Extended Length (IN):22.80
Extended Length (mm):579.2
Finish:Dampers: Zinc Plated/Springs: Black
Front Main Spring Rate (lbs/in):374
Internal Design:Monotube
PartType:Suspension Kit
Piston Diameter:60mm
Prop 65 (Y/N):Y
Prop 65 - Short Label:WARNING: Cancer &
Reproductive Harm - www.P65Warnings.ca.gov
Reservoir:No
Segment:Light Truck
Series:B8 6112
Shaft Diameter:18mm
Spring Seat Included:Yes
Stroke/Travel Length (IN):6.18
Stroke/Travel Length (mm):157.0
Title:Bilstein Shock Absorbers
Some of the interchangeable part numbers are:
Customer Video Reviews
Watch genuine customer videos showing their upgrades and honest results of similar products
Fitment Table
This product is compatible with these vehicles:
Year
Make
Model
Notes
Position
2025
Ford
Bronco
Badlands
Aftermarket upper control arms recommended for lift heights greater than 2.5"; Provides 2.0-3.4" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Without HOSS 3.0 Package
2 Door
Front
2025
Ford
Bronco
Base
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2024
Ford
Bronco
Badlands
Provides 2.0-3.4" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2024
Ford
Bronco
Big Bend
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2024
Ford
Bronco
Black Diamond
Aftermarket upper control arms recommended for lift heights greater than 2.5"; Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package
2 Door
Front
2024
Ford
Bronco
Heritage Edition
Provides 0.6-2.1" Front Lift
2 Door
Front
2024
Ford
Bronco
Heritage Limited Edition
Provides 0.6-2.1" Front Lift
2 Door
Front
2024
Ford
Bronco
Outer Banks
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2023
Ford
Bronco
Badlands
Provides 2.0-3.4" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2023
Ford
Bronco
Base
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2023
Ford
Bronco
Big Bend
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2023
Ford
Bronco
Black Diamond
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2023
Ford
Bronco
Heritage Edition
Provides 0.6-2.1" Front Lift
2 Door
Front
2023
Ford
Bronco
Heritage Limited Edition
Provides 0.6-2.1" Front Lift
2 Door
Front
2023
Ford
Bronco
Outer Banks
Aftermarket upper control arms recommended for lift heights greater than 2.5"; Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package
2 Door
Front
2022
Ford
Bronco
Badlands
Provides 2.0-3.4" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2022
Ford
Bronco
Base
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2022
Ford
Bronco
Big Bend
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2022
Ford
Bronco
Black Diamond
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2022
Ford
Bronco
Outer Banks
Aftermarket upper control arms recommended for lift heights greater than 2.5"; Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package
2 Door
Front
2022
Ford
Bronco
Wildtrak
Provides 0.6-2.1" Front Lift
2 Door
Front
2021
Ford
Bronco
Badlands
Provides 2.0-3.4" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2021
Ford
Bronco
Base
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2021
Ford
Bronco
Big Bend
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2021
Ford
Bronco
Black Diamond
Aftermarket upper control arms recommended for lift heights greater than 2.5"; Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package
2 Door
Front
2021
Ford
Bronco
First Edition
Provides 0.6-2.1" Front Lift
2 Door
Front
2021
Ford
Bronco
Outer Banks
Provides 3.6" Front Lift Without Sasquatch Package; 0.6-2.1" Front Lift With Sasquatch Package; Aftermarket upper control arms recommended for lift heights greater than 2.5"
2 Door
Front
2021
Ford
Bronco
Wildtrak
Provides 0.6-2.1" Front Lift
2 Door
Front
