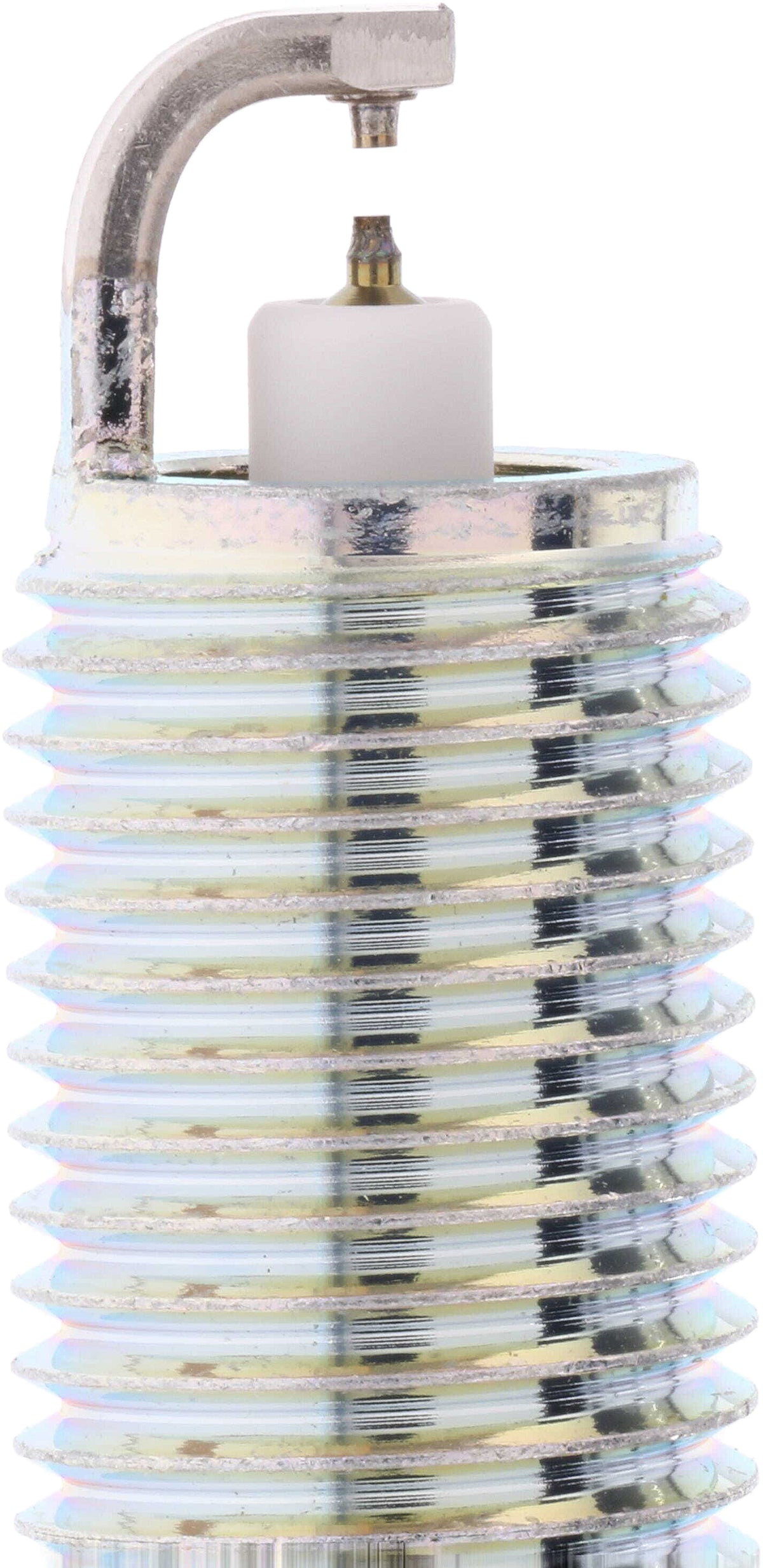

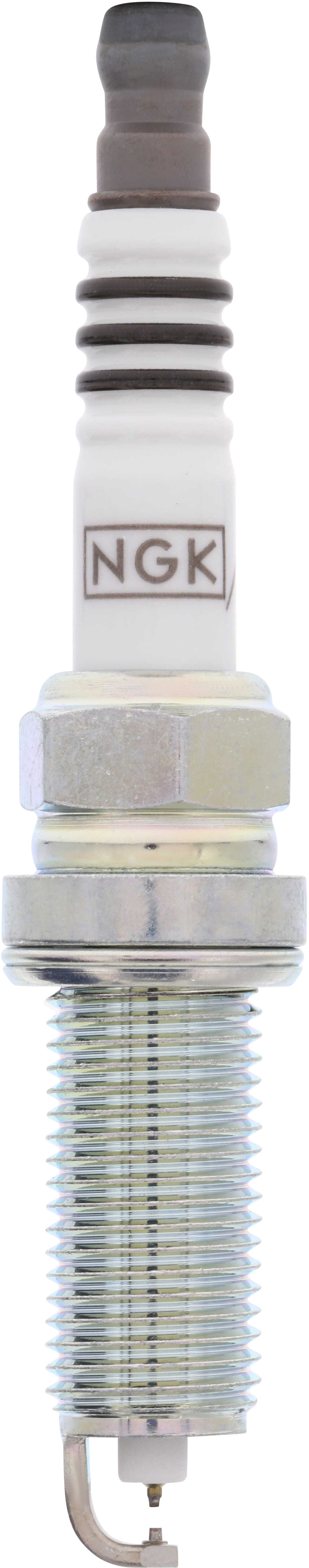

NGK Laser Iridium High Ignitability Spark Plug - DF6H-11B
NGK Laser Iridium High Ignitability Spark Plug - DF6H-11B
NGK Laser Iridium High Ignitability Spark Plug - DF6H-11B
NGK Laser Iridium High Ignitability Spark Plug - DF6H-11B

NGK Laser Iridium High Ignitability Spark Plug - DF6H-11B

SKU: NGK-DF6H-11B

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.

Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number DF6H-11B
  • UPC 00087295959930

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Dual Fine Electrode (DFE) - High Ignitability
Ground Electrode Tip Material Platinum
Insulator Material Ceramic
Manufacturer Heat Range 6
Metallurgy Iridium Platinum
Resistance 5000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2024 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2023 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2022 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2022 Toyota C-HR
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.84" stroke
  • Gap 0.044"
2021 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2021 Toyota C-HR
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.84" stroke
  • Gap 0.044"
2020 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2020 Toyota C-HR
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.84" stroke
  • Gap 0.044"
2019 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2019 Toyota C-HR
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.84" stroke
  • Gap 0.044"
2019 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Engine code 2ZR-FE
  • Gap 0.044"
2018 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2018 Toyota C-HR
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.84" stroke
  • Gap 0.044"
2018 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2018 Toyota Corolla iM
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2017 Lexus CT200h
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2017 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2017 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2017 Toyota Corolla iM
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2017 Toyota Prius V
  • Wagon
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2016 Lexus CT200h
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2016 Scion iM
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2016 Toyota Avanza
  • 1.5L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.57" stroke
  • Gap 0.044in
2016 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2016 Toyota Prius V
  • Wagon
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
2015 Lexus CT200h
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
  • From 4/2015
2015 Scion iQ
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.17" stroke
  • Gap 0.044"
2015 Toyota Corolla
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
  • From 4/2015
2015 Toyota Prius
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
  • From 4/2015
2015 Toyota Prius Plug-In
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
  • From 4/2015
2015 Toyota Prius V
  • 1.8L
  • Inline engine
  • 4 cylinders
  • 3.17" bore
  • 3.48" stroke
  • Gap 0.044"
  • From 4/2015
2014 Scion iQ
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.85" bore
  • 3.17" stroke
  • Gap 0.044"
  • From 11/2013
