Home » NGK Laser Iridium Spark Plug - IFR5G11

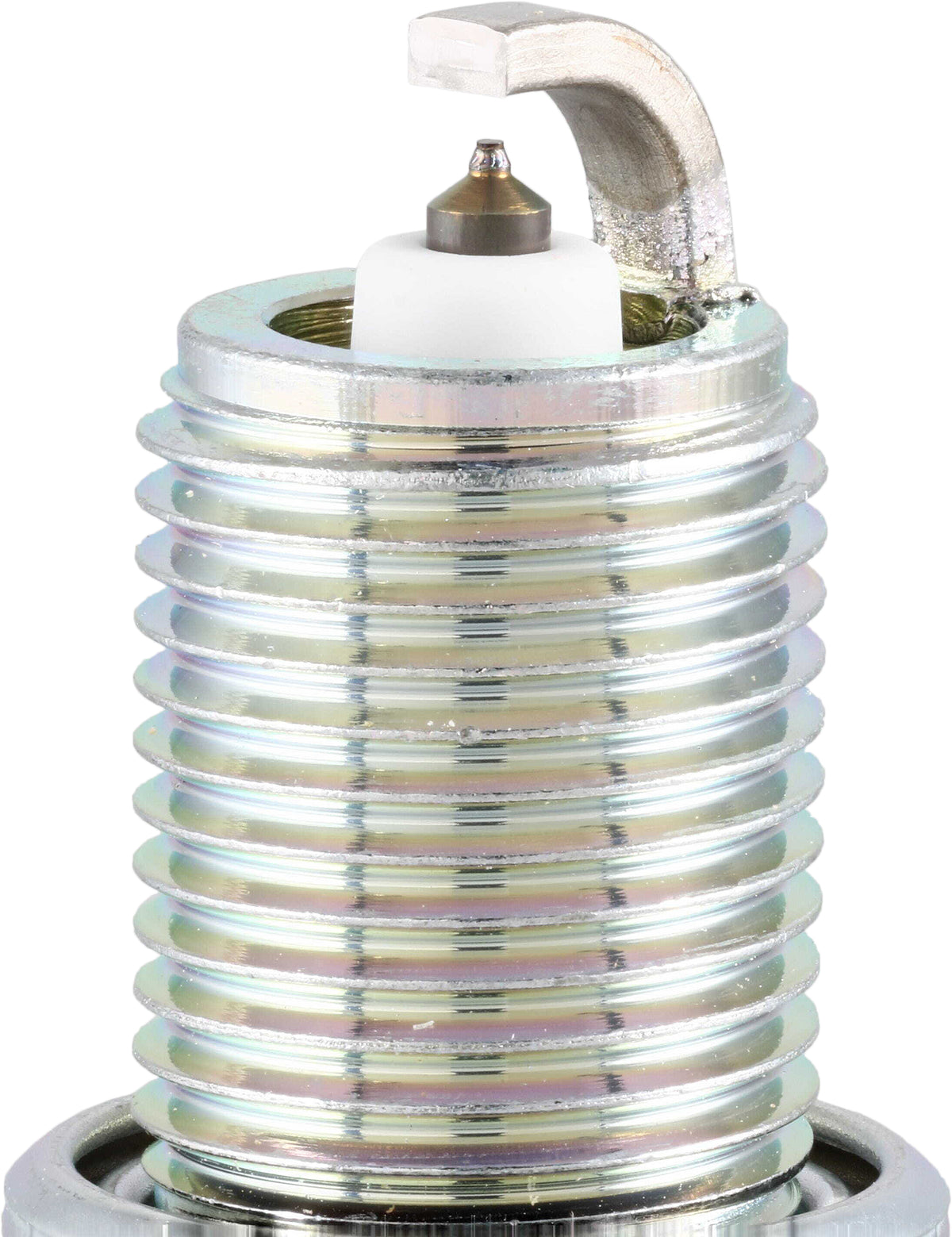

NGK Laser Iridium Spark Plug - IFR5G11
NGK Laser Iridium Spark Plug - IFR5G11
NGK Laser Iridium Spark Plug - IFR5G11
NGK Laser Iridium Spark Plug - IFR5G11

NGK Laser Iridium Spark Plug - IFR5G11

SKU: NGK-IFR5G11

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.

Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number IFR5G11
  • UPC 00087295178546

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Platinum
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Iridium Platinum
Resistance 5000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2014 Kia Sedona
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.42" stroke
  • w/14mm Thread Spark Plug (OE # 27410-23700)
  • Gap 0.044"
2012 Hyundai Veracruz
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2012 Kia Sedona
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.42" stroke
  • w/14mm Thread Spark Plug (OE # 27410-23700)
  • Gap 0.044"
2011 Hyundai Azera
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2011 Hyundai Azera
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2011 Hyundai Veracruz
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2011 Kia Sedona
  • 3.5L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.42" stroke
  • w/14mm Thread Spark Plug (OE # 27410-23700)
  • Gap 0.044"
2010 Hyundai Azera
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2010 Hyundai Azera
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2010 Hyundai Entourage
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2010 Hyundai Sonata
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2010 Hyundai Veracruz
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2010 Kia Sedona
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2010 Kia Sportage
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2009 Hyundai Azera
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2009 Hyundai Azera
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2009 Hyundai Entourage
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2009 Hyundai Santa Fe
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2009 Hyundai Sonata
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2009 Hyundai Tucson
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2009 Hyundai Veracruz
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2009 Kia Amanti
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2009 Kia Sedona
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2009 Kia Sorento
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2009 Kia Sorento
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2009 Kia Sportage
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2008 Hyundai Azera
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2008 Hyundai Azera
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2008 Hyundai Entourage
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2008 Hyundai Santa Fe
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2008 Hyundai Sonata
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2008 Hyundai Tiburon
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2008 Hyundai Tucson
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2008 Hyundai Veracruz
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2008 Kia Amanti
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2008 Kia Sedona
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2008 Kia Sorento
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2008 Kia Sorento
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2008 Kia Sportage
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2007 Hyundai Azera
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2007 Hyundai Azera
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2007 Hyundai Entourage
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2007 Hyundai Santa Fe
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2007 Hyundai Sonata
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2007 Hyundai Tucson
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2007 Hyundai Veracruz
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2007 Kia Amanti
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2007 Kia Sedona
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2007 Kia Sorento
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2007 Kia Sportage
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2006 Hyundai Azera
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2006 Hyundai Sonata
  • 3.3L
  • V engine
  • 6 cylinders
  • 3.62" bore
  • 3.30" stroke
  • Gap 0.044"
2006 Hyundai Tucson
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2006 Kia Sedona
  • 3.8L
  • V engine
  • 6 cylinders
  • 3.78" bore
  • 3.43" stroke
  • Gap 0.044"
2006 Kia Sportage
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2005 Honda Civic
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.15" stroke
  • Dual Plug
  • Gap 0.044"
2005 Hyundai Tucson
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2005 Kia Sportage
  • 2.7L
  • V engine
  • 6 cylinders
  • 3.41" bore
  • 2.95" stroke
  • Gap 0.044"
2004 Honda Civic
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.15" stroke
  • Dual Plug
  • Gap 0.044"
2003 Honda Civic
  • 1.3L
  • Inline engine
  • 4 cylinders
  • 2.87" bore
  • 3.15" stroke
  • Dual Plug
  • Gap 0.044"
2003 Hyundai Elantra
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.23" bore
  • 3.68" stroke
  • Automatic
  • Gap 0.044"
