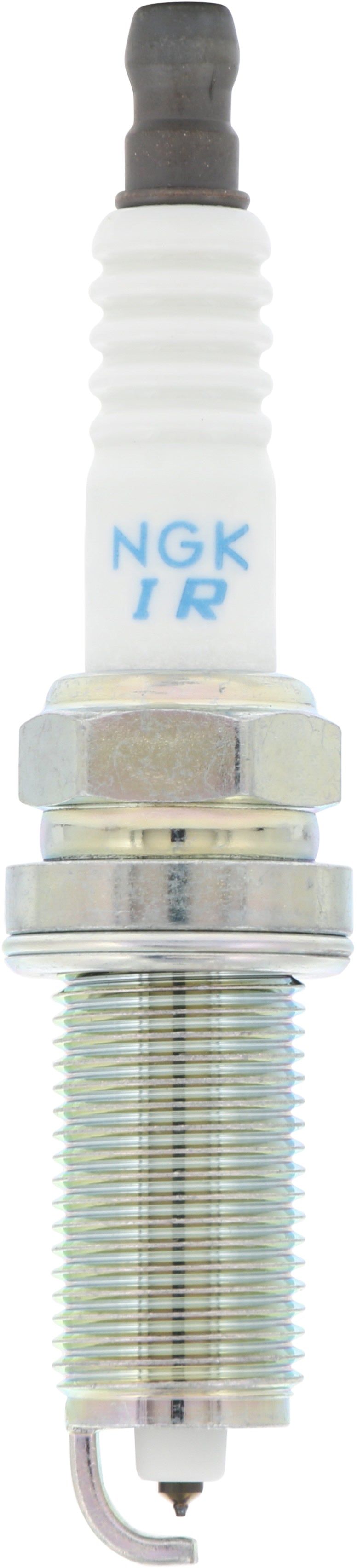

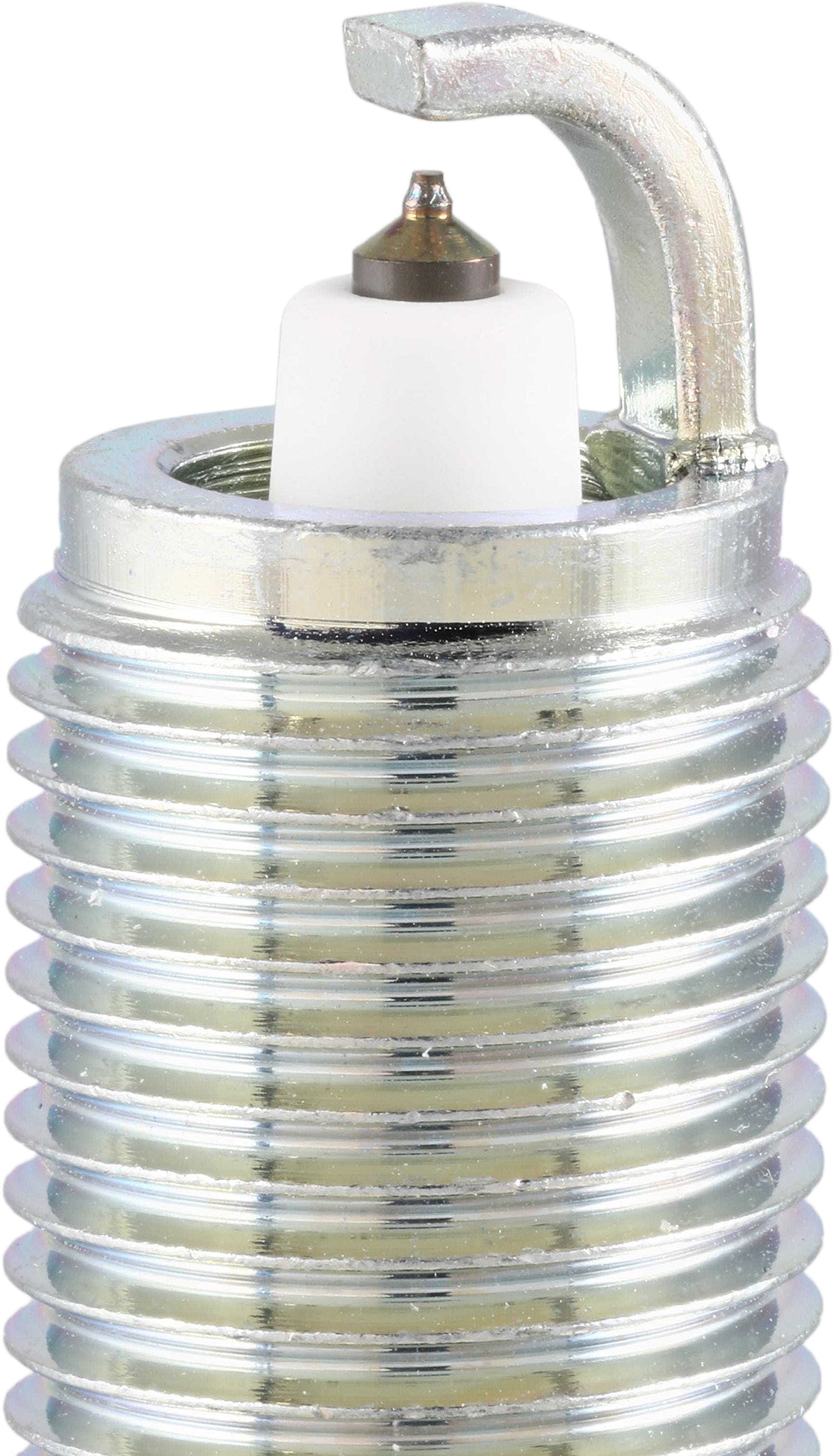

NGK Laser Iridium Spark Plug - ILZFR5E8D

SKU: NGK-ILZFR5E8D

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.

Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number ILZFR5E8D
  • UPC 00087295931639

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Stud
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Platinum
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Iridium Platinum
Resistance 5000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2018 Ram 2500
  • 5.7L
  • V engine
  • 8 cylinders
  • 3.92" bore
  • 3.58" stroke
  • CNG
  • Dual Plug
  • Gap 0.032"
2017 Ram 2500
  • 5.7L
  • V engine
  • 8 cylinders
  • 3.92" bore
  • 3.58" stroke
  • CNG
  • Dual Plug
  • Gap 0.032"
2016 Ram 2500
  • 5.7L
  • V engine
  • 8 cylinders
  • 3.92" bore
  • 3.58" stroke
  • CNG
  • Dual Plug
  • Gap 0.032"
2015 Ram 2500
  • 5.7L
  • V engine
  • 8 cylinders
  • 3.92" bore
  • 3.58" stroke
  • CNG
  • Dual Plug
  • Gap 0.032"
2014 Ram 2500
  • 5.7L
  • V engine
  • 8 cylinders
  • 3.92" bore
  • 3.58" stroke
  • CNG
  • Dual Plug
  • Gap 0.032"
2013 Ram 2500
  • 5.7L
  • V engine
  • 8 cylinders
  • 3.92" bore
  • 3.58" stroke
  • CNG
  • Dual Plug
  • Gap 0.032"
