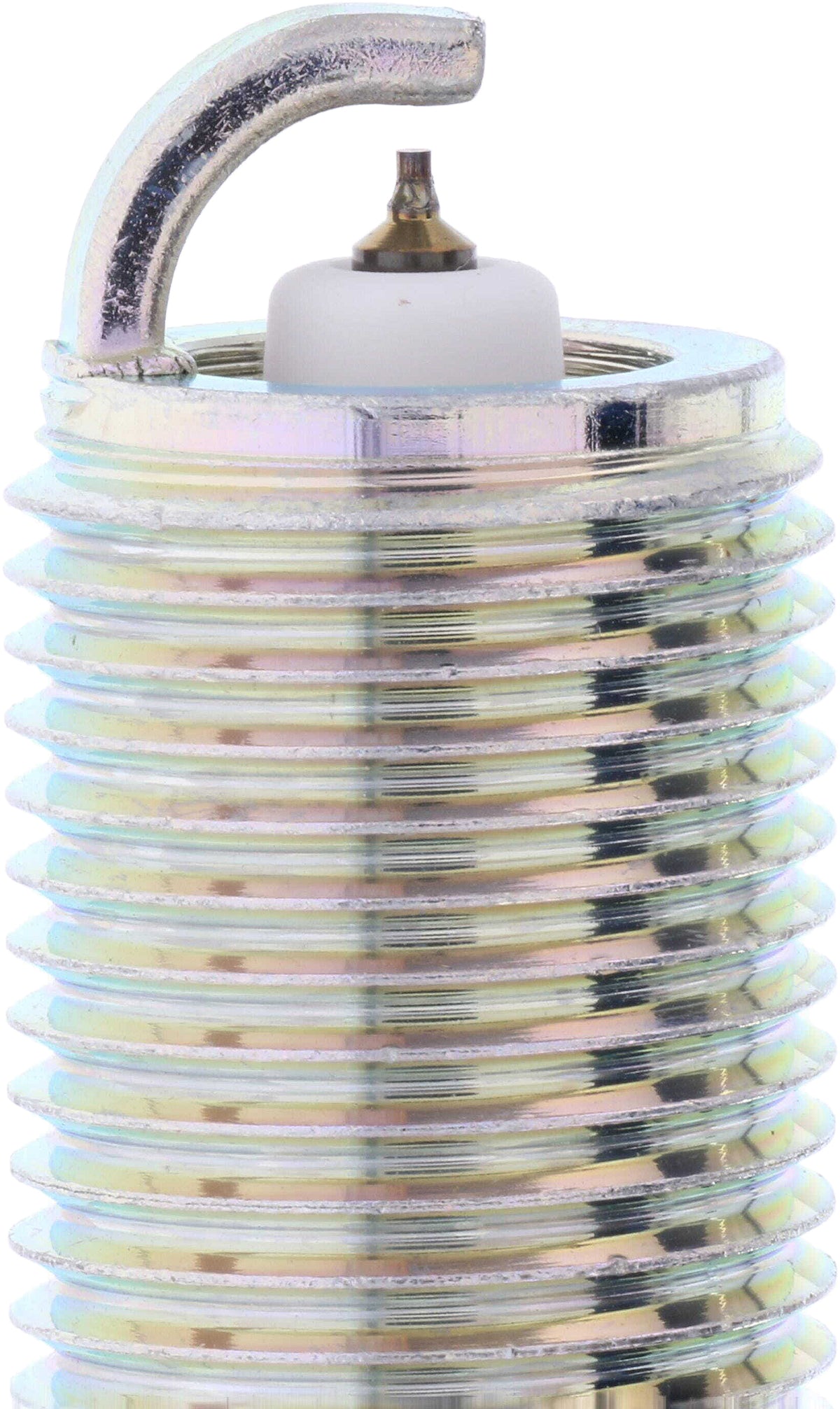

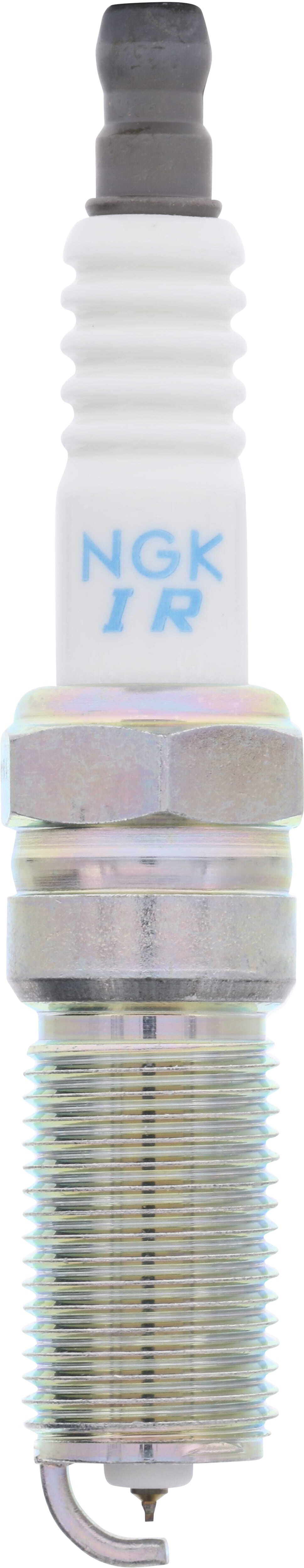

NGK Laser Iridium Spark Plug - LTR5BI-13

SKU: NGK-LTR5BI-13

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.

Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number LTR5BI-13
  • UPC 00087295900833

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Copper
Ground Electrode Quantity 1
Ground Electrode Tip Design Standard
Ground Electrode Tip Material Nickel
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Single Iridium
Resistance 5000 ohm
Resistor Type Yes
Seat Type Tapered
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washers Included No
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2017 Mazda 5
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2016 Mazda 5
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2015 Mazda 5
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2014 Mazda 5
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2013 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Non-SkyActiv Eng
  • Gap 0.052"
2013 Mazda 3
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2013 Mazda 3 Sport
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Non-SkyActiv Eng
  • Gap 0.052"
2013 Mazda 3 Sport
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2013 Mazda 5
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2013 Mazda 6
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2012 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Non-SkyActiv Eng
  • Gap 0.052"
2012 Mazda 3
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2012 Mazda 3 Sport
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Non-SkyActiv Eng
  • Gap 0.052"
2012 Mazda 3 Sport
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2012 Mazda 5
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2012 Mazda 6
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2012 Mazda CX-7
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2011 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Non-SkyActiv Eng
  • Gap 0.052"
2011 Mazda 3
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2011 Mazda 3 Sport
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Non-SkyActiv Eng
  • Gap 0.052"
2011 Mazda 3 Sport
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2011 Mazda 6
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2011 Mazda CX-7
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2011 Mazda Tribute
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2010 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2010 Mazda 3
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2010 Mazda 3 Sport
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2010 Mazda 3 Sport
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2010 Mazda 5
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Gap 0.052"
2010 Mazda 6
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2010 Mazda CX-7
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2010 Mazda Tribute
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2009 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2009 Mazda 3
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Naturally Aspirated
  • Gap 0.052"
2009 Mazda 3 Sport
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2009 Mazda 5
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Gap 0.052"
2009 Mazda 6
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2009 Mazda Tribute
  • 2.5L
  • Inline engine
  • 4 cylinders
  • 3.50" bore
  • 3.94" stroke
  • Gap 0.052"
2008 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2008 Mazda 3
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Naturally Aspirated
  • Gap 0.052"
2008 Mazda 5
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Gap 0.052"
2008 Mazda 6
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Gap 0.052"
2007 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2007 Mazda 3
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Naturally Aspirated
  • Gap 0.052"
2007 Mazda 6
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Naturally Aspirated
  • Gap 0.052"
2006 Mazda 3
  • 2.0L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.27" stroke
  • Gap 0.052"
2006 Mazda 3
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Gap 0.052"
2006 Mazda 6
  • 2.3L
  • Inline engine
  • 4 cylinders
  • 3.44" bore
  • 3.70" stroke
  • Naturally Aspirated
  • Gap 0.052"
