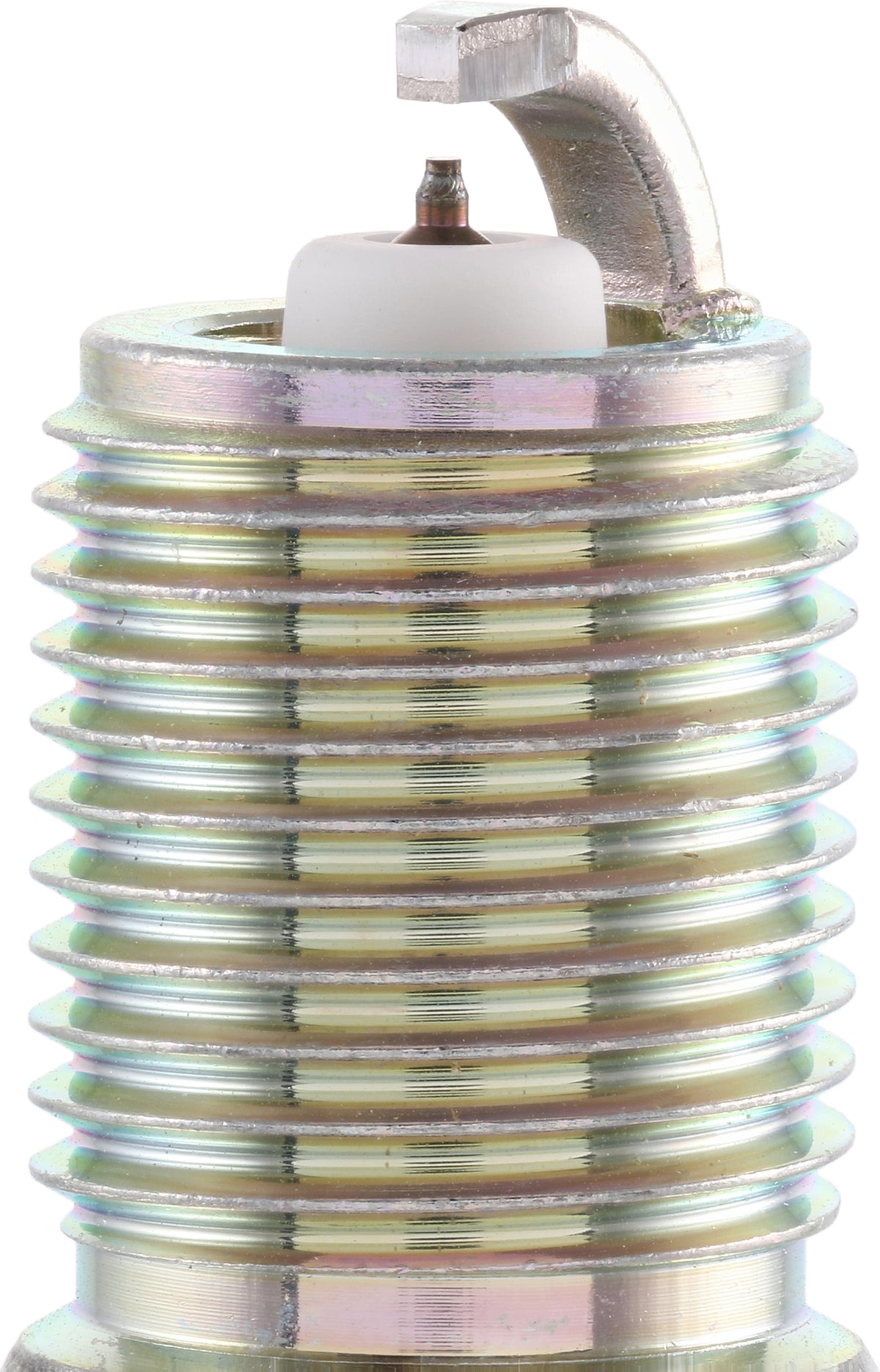

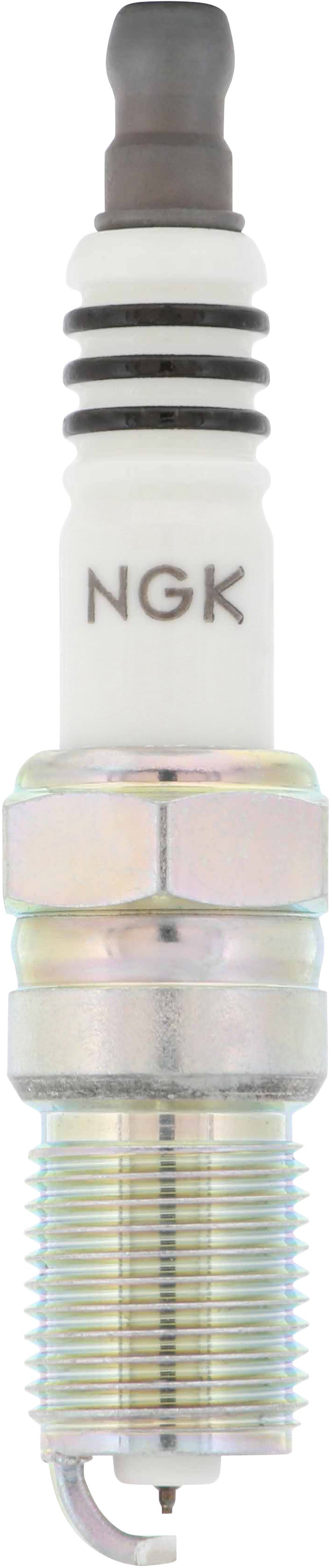

NGK Iridium IX Spark Plug - TR7IX
NGK Iridium IX Spark Plug - TR7IX
NGK Iridium IX Spark Plug - TR7IX
NGK Iridium IX Spark Plug - TR7IX

NGK Iridium IX Spark Plug - TR7IX

SKU: NGK-TR7IX

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.

Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number TR7IX
  • UPC 00087295136904

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Insulator Material Ceramic
Manufacturer Heat Range 7
Metallurgy Single Iridium
Resistance 5000 ohm
Resistor Type Yes
Seat Type Tapered
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washers Included No
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2009 Cadillac STS
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2009 Cadillac XLR
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2008 Cadillac STS
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2008 Cadillac XLR
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2007 Cadillac STS
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2007 Cadillac XLR
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2006 Cadillac STS
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
2006 Cadillac XLR
  • 4.4L
  • V engine
  • 8 cylinders
  • 3.58" bore
  • 3.31" stroke
  • Gap 0.040"
