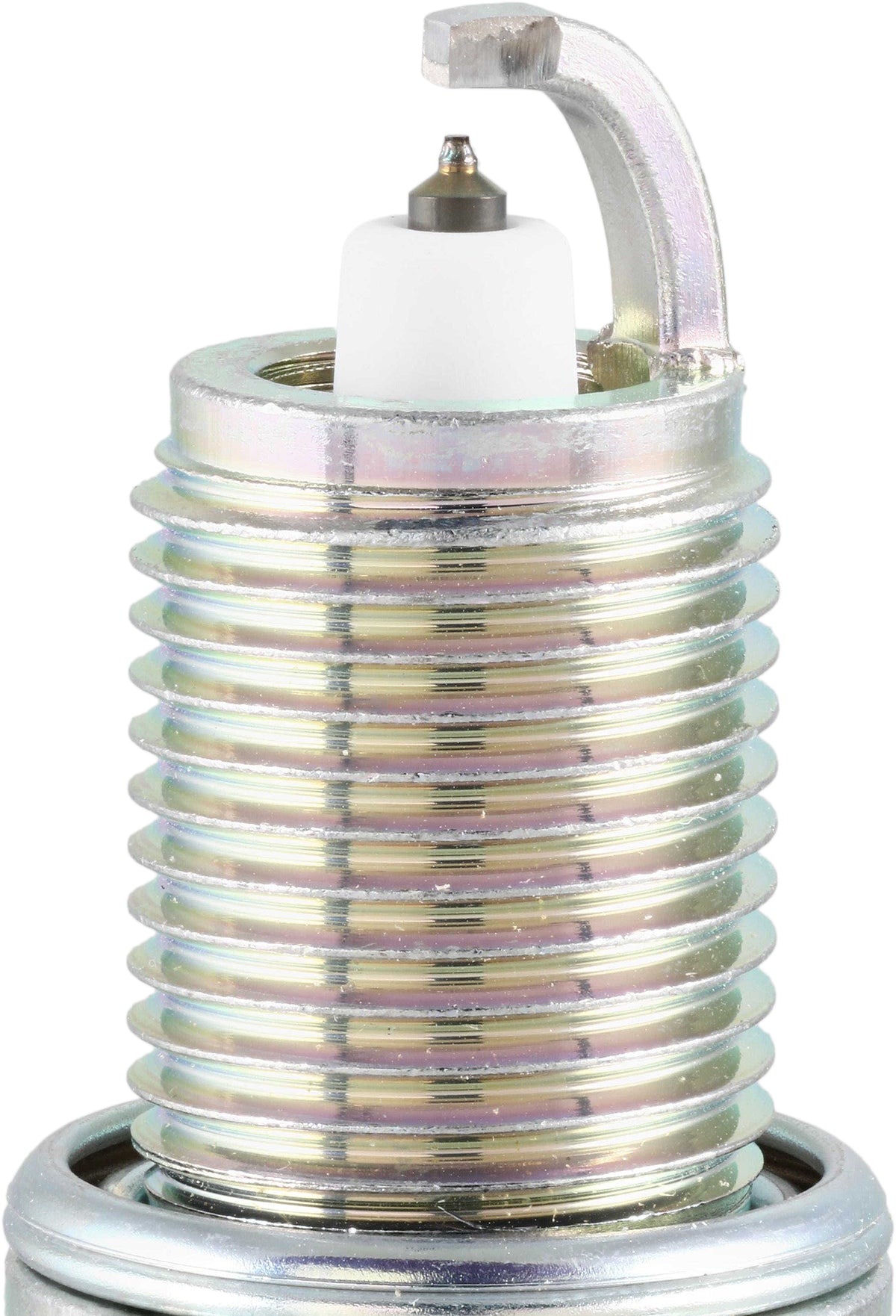

NGK Iridium IX Spark Plug - ZFR5FIX-E
NGK Iridium IX Spark Plug - ZFR5FIX-E
NGK Iridium IX Spark Plug - ZFR5FIX-E
NGK Iridium IX Spark Plug - ZFR5FIX-E

NGK Iridium IX Spark Plug - ZFR5FIX-E

SKU: NGK-ZFR5FIX-E

Enter your VIN, then Add to cart. We’ll manually check fitment before shipping.

Product details
  • Part Name Spark Plug
  • Brand NGK
  • Country of Manufacture Japan
  • Part Number ZFR5FIX-E
  • UPC 00087295953327

Specifications

Specifications
Center Electrode Core Material Copper
Center Electrode Design Fine Wire
Center Electrode Tip Material Iridium
Electrical Terminal Type Non-Removable Nut
Grade Type Performance
Ground Configuration J-Gap
Ground Electrode Core Material Nickel
Ground Electrode Quantity 1
Ground Electrode Tip Design Taper Cut
Ground Electrode Tip Material Nickel
Insulator Material Ceramic
Manufacturer Heat Range 5
Metallurgy Single Iridium
Resistance 10000 ohm
Resistor Type Yes
Seat Type Flat
Short Style Spark Plug No
Skirt No
Thread Type Standard Metric
Washer Type Crush
Washers Included Yes
Country of Origin Japan
Estimate Delivery Date
Have Questions?
Ask our experts via Live Chat at the bottom right corner of this page.
100% Fitment Guarantee Warranty Why NGK? Characteristics Interchange/OEM Parts
Fitment is guaranteed:

If your vehicle is listed on the fitment table below, the product will fit your car - we guarantee it. All you need to do is to ensure that the vehicle's Year, Make, Model, Trim, and any other notes specified inside the fitment table are respected.

Customer Video Reviews

Watch genuine customer videos showing their upgrades and honest results of similar products

Fitment Table

This product is compatible with these vehicles:

Year Make Model Notes Position
2014 Chrysler 200
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2014 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2013 Chrysler 200
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2013 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2012 Chrysler 200
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2012 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2011 Chrysler 200
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2011 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2010 Chrysler Sebring
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2010 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2010 Dodge Caliber
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2010 Dodge Journey
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2009 Chrysler Sebring
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2009 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2009 Dodge Caliber
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Naturally Aspirated
  • Gap 0.032"
2009 Dodge Caliber
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Turbocharged
  • Gap 0.032"
2009 Dodge Journey
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2009 Jeep Compass
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2009 Jeep Patriot
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2008 Chrysler Sebring
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2008 Dodge Avenger
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Engine code EDG
  • Engine version PZEV
  • Gap 0.032"
2008 Dodge Caliber
  • 2.4L
  • Inline engine
  • 4 cylinders
  • 3.46" bore
  • 3.82" stroke
  • Turbocharged
  • Gap 0.032"
